SeaKing 120A/90A/60A/30A V4
SeaKing 120A/90A/60A/30A V4

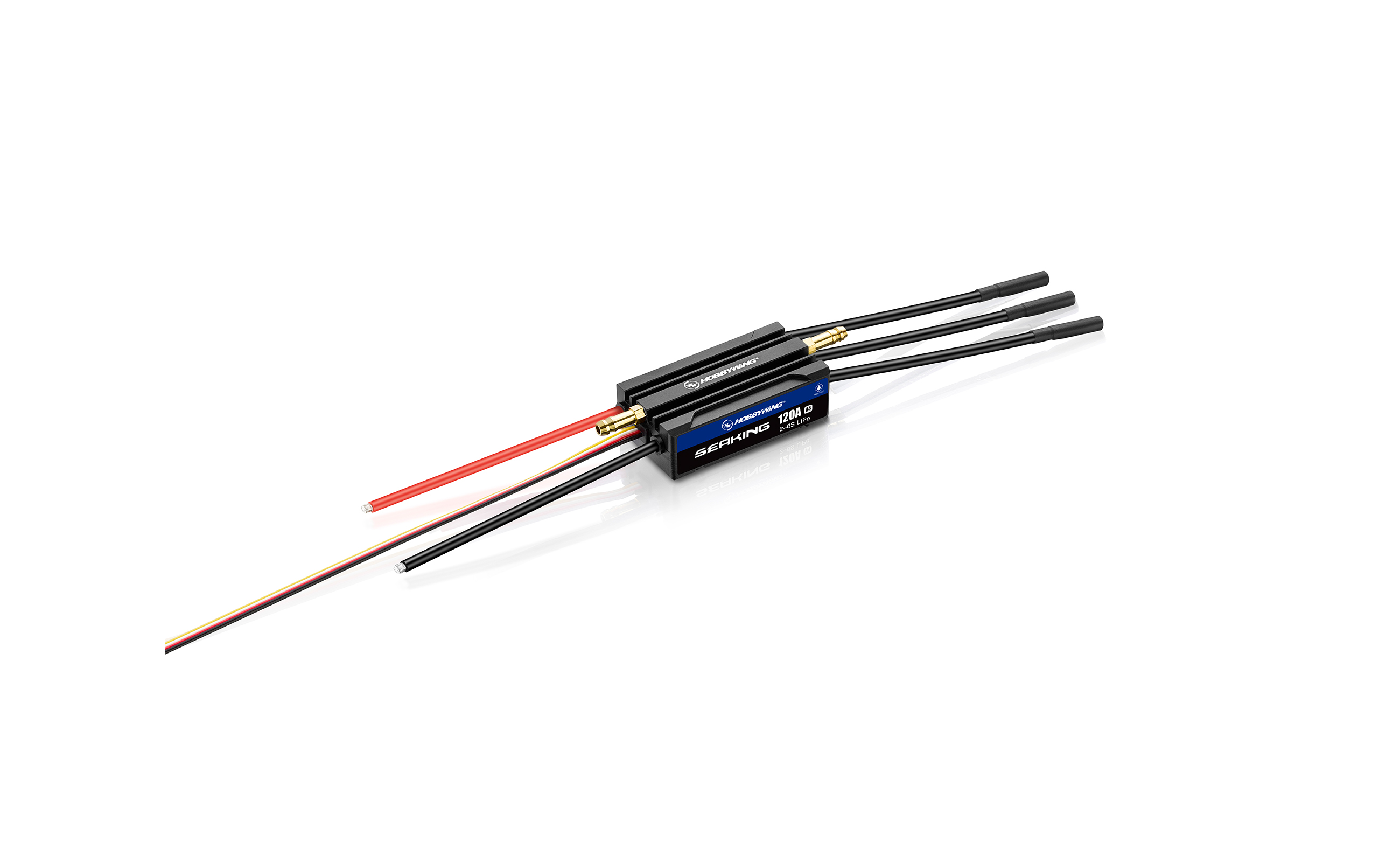

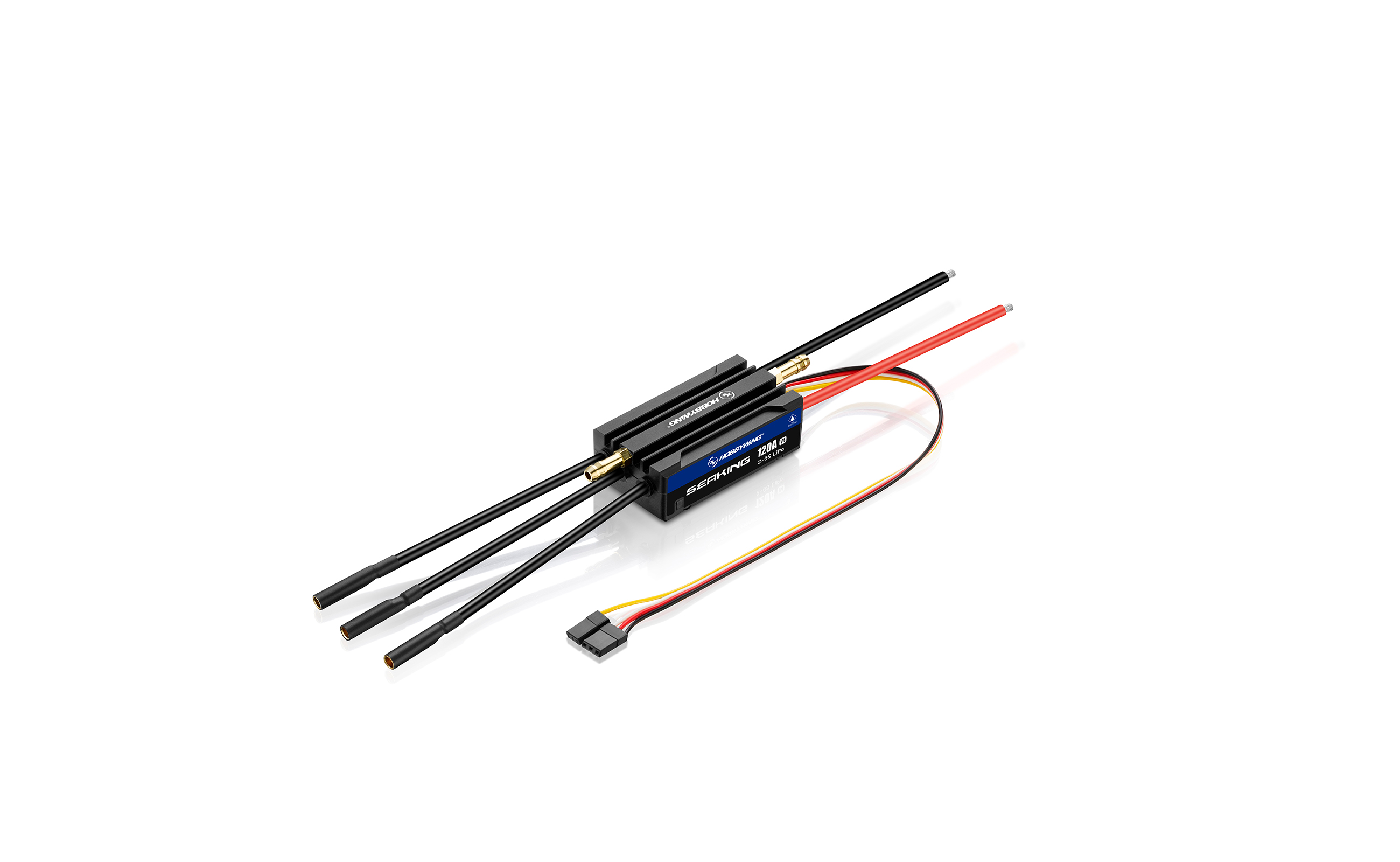

SeaKing 120A V4

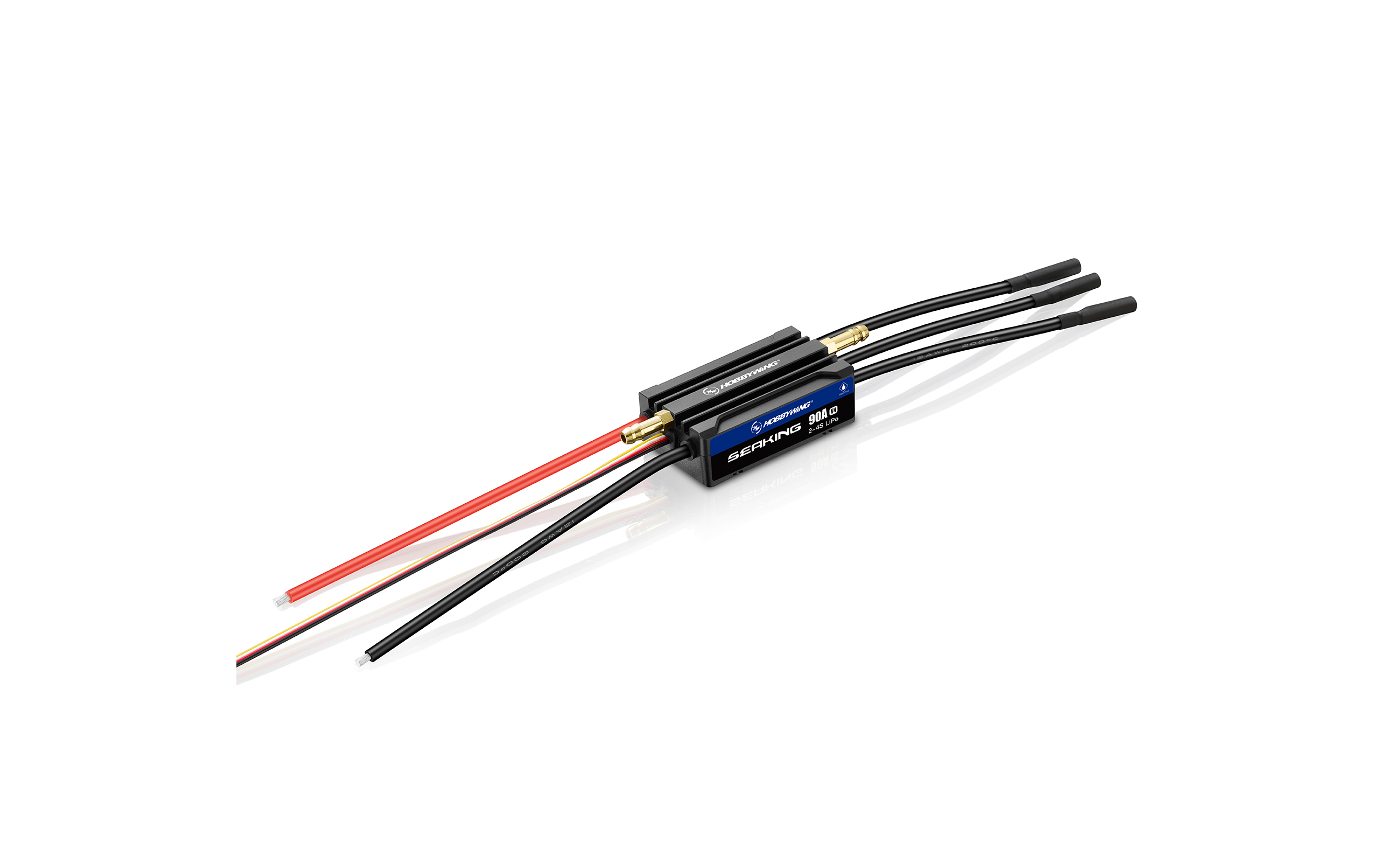

SeaKing 90A V4

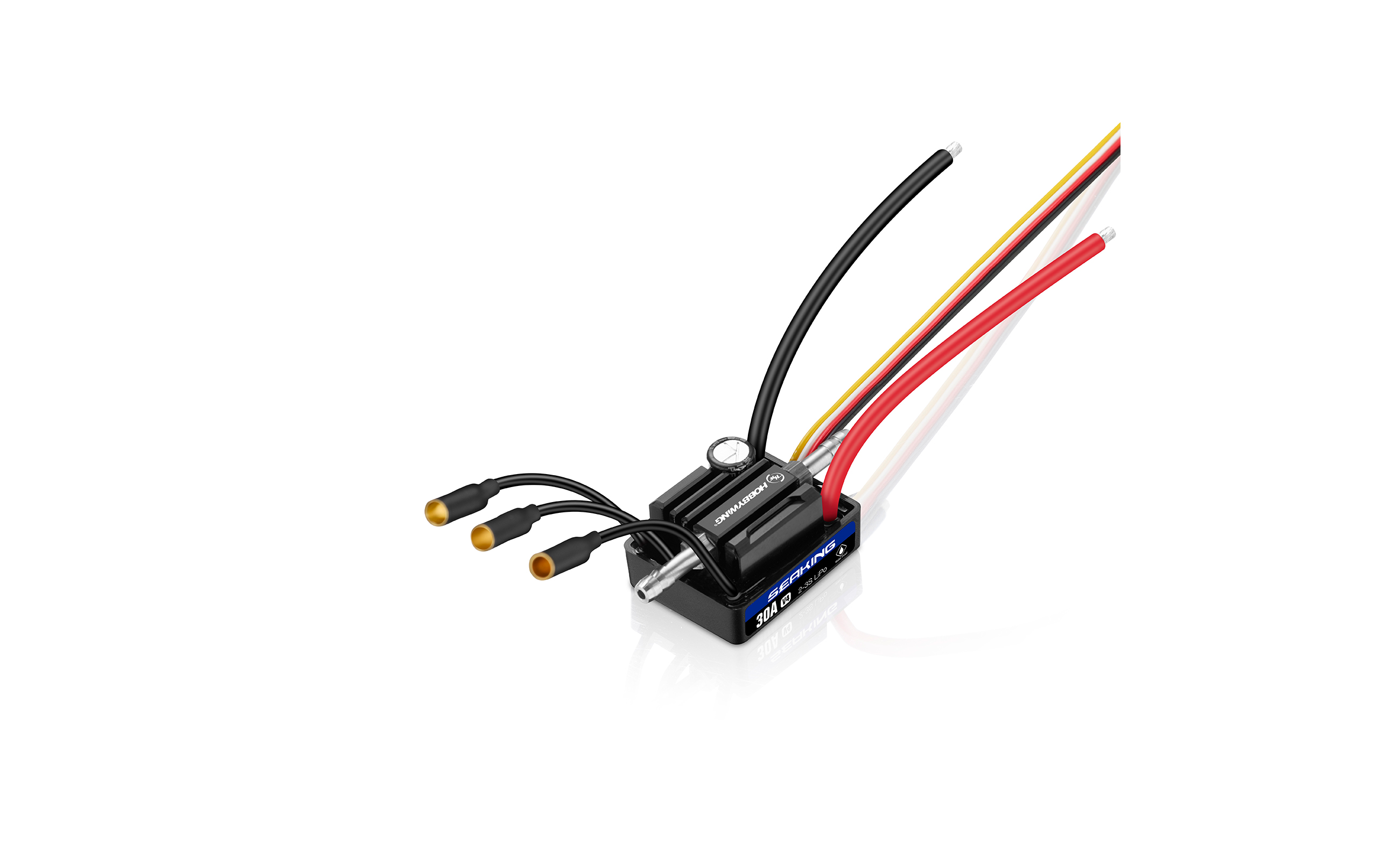

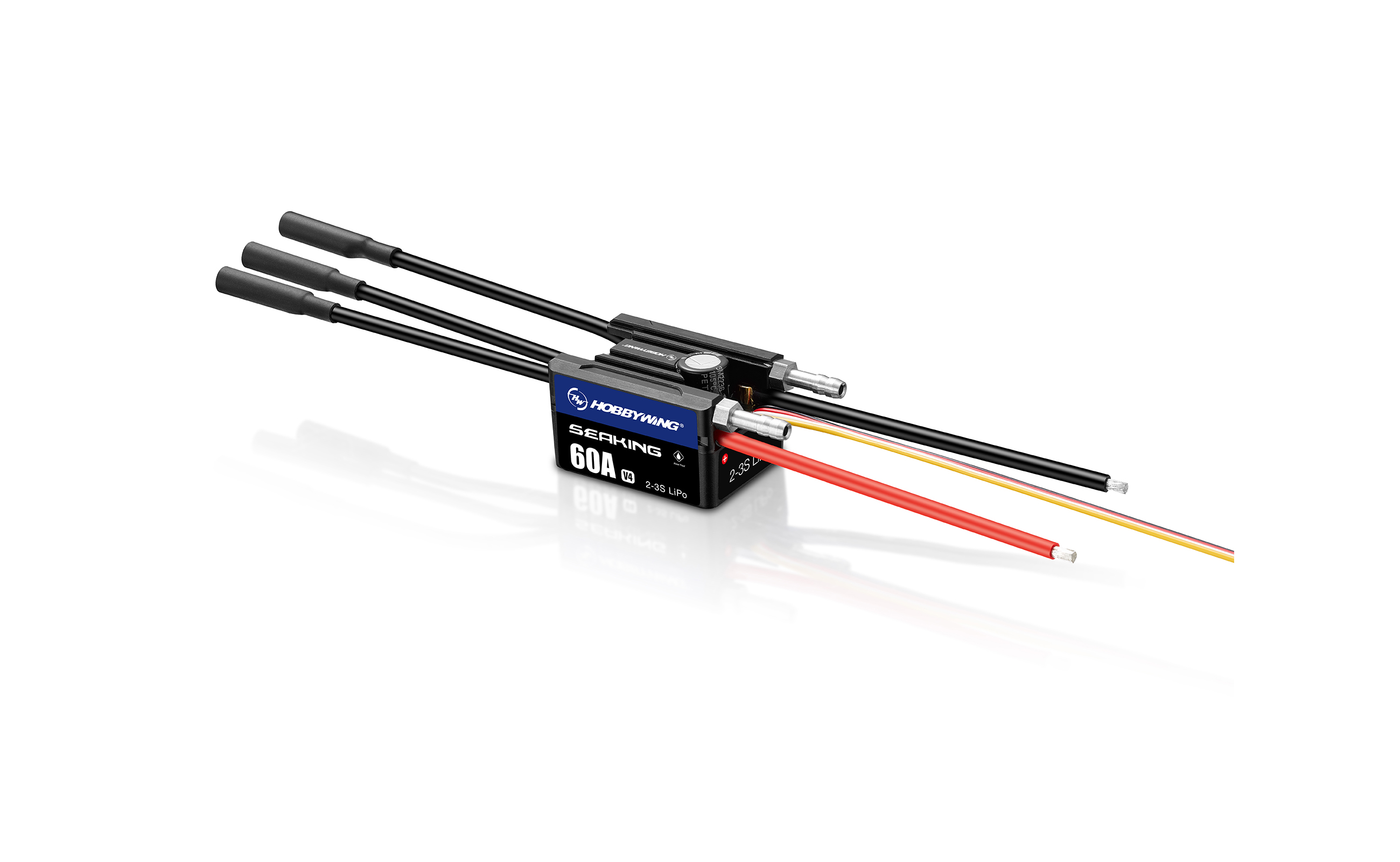

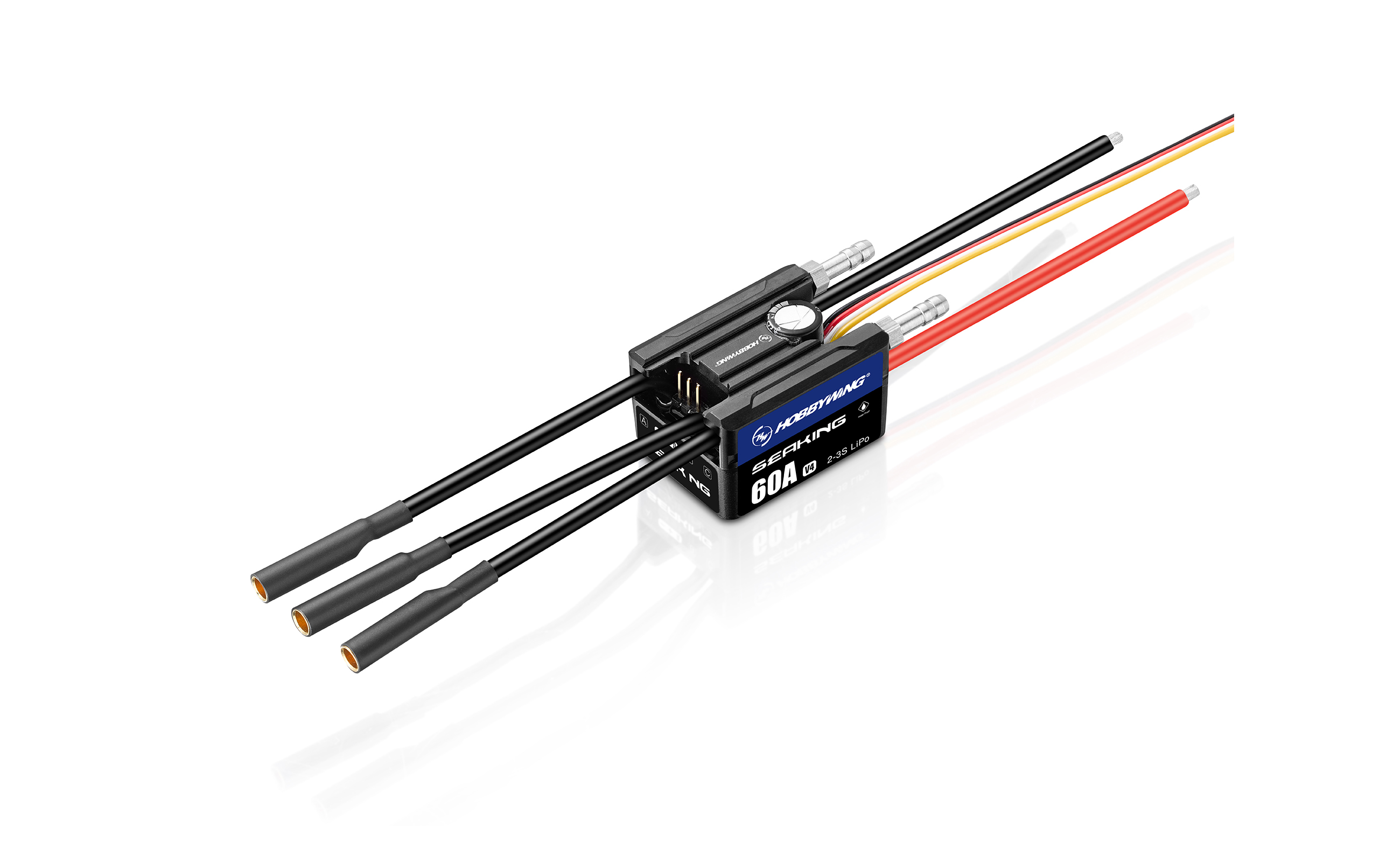

SeaKing 60A V4

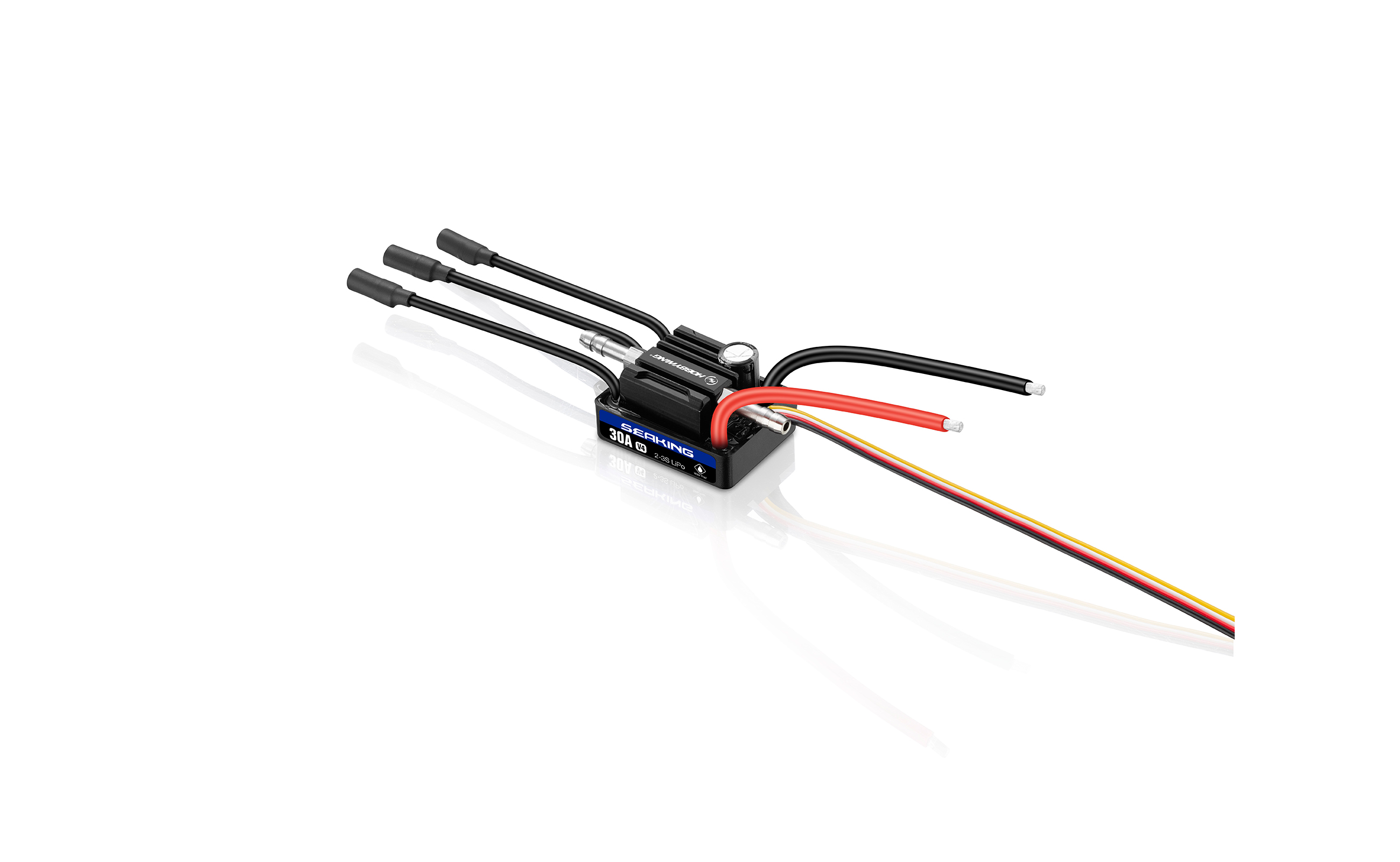

SeaKing 30A V4
Ultra-high Reliability and Durability
low voltage
protection
over-temperature
protection
throttle signal
loss protection
overload
protection
Hardware foundation
Robust
Software optimization
Enhanced
These protection strategies are specifically
Designed for boat applilcations.

Enables the ESC to deliver powerful
performance while significantly reducing the risk of damage under high-load conditions.

IP67 Fully Waterproof Design
  • With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities.
  • It can be used immediately without any additional waterproofing treatment.
Splash protect
waterproof
dustproof
Note:The IP67 rating ensures protection against splashes, water, and dust under
normal use. It has been tested under controlled lab conditions according to GB/T
4208-2017 (domestic) and IEC 60529 (international) standards. However, the
protection is not permanent and may decrease with wear and aging.
  • The built-in BEC features a high output current and adjustable output voltage with
  • two or three levels, allowing it to effortlessly power a wide range of
  • high-performance and high-voltage servos. This provides users with enhanced
  • control and a more enjoyable experience.
ESC 30A 60A 90A 120A
BEC Voltage 6.0/7.4V 6.0/7.4V 6.0/7.4V/8.4V 6.0/7.4V/8.4V
Maximum
output current		 4A 7A 20A 25A
Slim Design for Easy Installation
  • The new ESC is significantly narrower than the previous Seaking 30A/60A/120A V3 models,
  • allowing for easier installation on narrow boats.
30A
V4 width:26mm
V4 is narrower than V3:8%
60A
V4 width:29mm
V4 is narrower than V3:25%
120A
V4 width:36mm
V4 is narrower than V3:10%
90A
V4 width:36mm
V4 is narrower than V3:N/A
Built-in Data Logging
for Performance
Monitoring
  • By connecting the ESC to the OTA Bluetooth module, real-time data such as
  • throttle position, voltage, temperature, and speed can be monitored via a
  • mobile app. After operation, historical data can be viewed in the form of curve
  • graphs, providing a clear overview of the ESC and motor's performance and
  • operating status.

Note:Due to the Bluetooth transmission distance, the effective distance is about 5m.
Please refer to the instruction manual for the connection method!

Capacitor
Overheating
Protection
  • The capacitor overheating protection helps
  • prevent damage to the ESC caused by capacitor
  • failure due to overloading, safeguarding the unit
  • against complete failure.

Note: The SeaKing 60A/30A V4 ESC don't have
capacitor overheat protection function.

Freewheeling Function
When enabled the
Freewheeling function
ESC temperature is

COOLER
When the throttle is released
the boat decelerates
FASTER
Cornering control
and handling
BETTER
When Freewheeling function is enabled, the boat decelerates faster when the throttle is released
When Freewheeling function is disabled, the boat decelerates slower when the throttle is released
AUX External Control
Channel for Real-time
Parameter Adjustment
  • By connecting the yellow signal wire to an unused receiver channel,
  • you can adjust ESC parameters (like reverse thrust) in real-time using the remote control,
  • adding convenience to parameter management.
Swipe left to view all

Note: The actual function of the yellow wire corresponds to the AUX CH Function settings in the parameter table.

Supports ESC Firmware Updates
  • Supports firmware updates via Hobbywing USB LINK software and HW LINK mobile app, ensuring access to the latest features.
  • Note: Updating requires an LCD programming box or OTA module, sold separately.
LCD programming box Pro
OTA module
Optimized Programmable Parameter
  • With 11 programmable parameters, the ESC is designed to meet competitive racing needs, offering a wider and more detailed range of settings.
Swipe left to view all
Product NameSeaking V4
  • 120A
  • 90A
  • 60A
  • 30A
Product Number
  •
  • 30302363
  • 30302362
  • 30302202
  • 30302061
Type
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • BL
  • SL
  • Waterproof
  • BL
  • SL
  • Waterproof
  • BL
  • SL
  • Waterproof
  • BL
  • SL
  • Waterproof
Specifications
  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 120A/500A
  • 2-6S Lipo
  • 6V/7.4V/8.4V @8A
  • 90A/360A
  • 2-4S Lipo
  • 6V/7.4V/8.4V @8A
  • 60A/200A
  • 2-3S Lipo
  • 6V/7.4V @4A
  • 30A/100A
  • 2-3S Lipo
  • 6V/7.4V @1.5A
Wires & Connectors
  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Red-12AWG-150mmx1,Black-12AWG-150mmx1
  • Black-12AWG-100mmx3
  • No
  • 4.0mm Gold female plug
  • Red-12AWG-150mmx1,Black-12AWG-150mmx1
  • Black-12AWG-100mmx3
  • No
  • 4.0mm Gold female plug
  • Red-14AWG-85mmx1,Black-14AWG-85mmx1
  • Black-14AWG-85mmx3
  • No
  • 4.0mm Gold female plug
  • Red-14AWG-75mmx1,Black-14AWG-75mmx1
  • Black-16AWG-60mmx3
  • No
  • 3.5mm Gold female plug
ESC Programing via
  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Supported
  • Supported
  • Supported
  • Supported
  • Throttle signal wire
  • Supported
  • Supported
  • Supported
  • Supported
  • Throttle signal wire
  • Supported
  • Supported
  • Supported
  • Supported
  • Throttle signal wire
  • Supported
  • Supported
  • Supported
  • Supported
  • Throttle signal wire
Data Recording
  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Supported
  • Supported
  • Supported
  • Supported
  • Supported
  • Supported
  • Supported
  • Supported
  • Supported
  • Supported
  • Supported
  • Supported
Firmware
  • Firmware Upgrade
  • Supported
  • Supported
  • Supported
  • Supported
Size & Weight
  • Size
  • Weight
  • 64.7x36.3x22.5mm
  • 123.5g(Including wire and output plug)
  • 60x36.3x22.5mm
  • 115.6g(Including wire and output plug)
  • 38.7x29x25mm
  • 64.6g(Including wire and output plug)
  • 32.8x26x18.3mm
  • 33.9g(Including wire and output plug)
Applications
  • Boat Applicable
  • ≤100CM
  • ≤80CM
  • ≤60CM
  • ≤45CM
Support

Manuals & Documents

Manuals

FAQ

LED Program Box_General

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

+
Multifunction LCD Program Box

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

+
OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD

+
