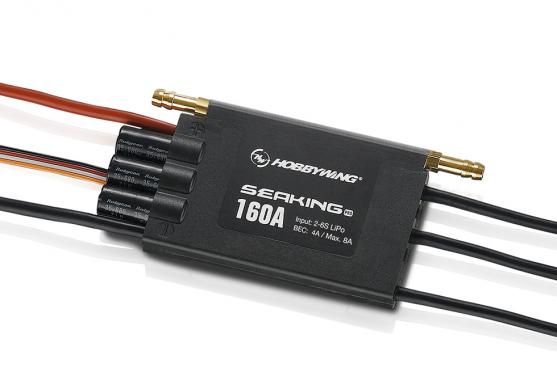

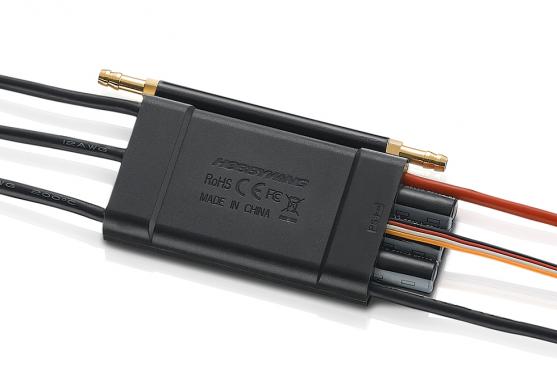

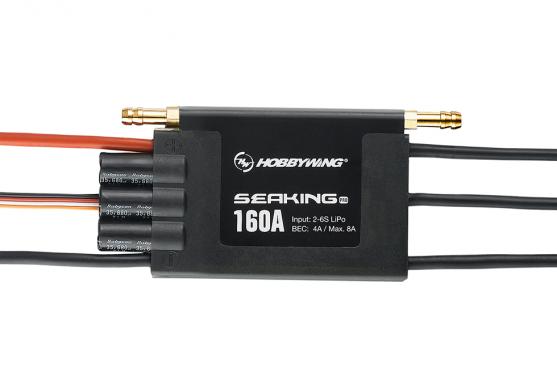

Seaking Pro 160A

Competition Design

The light weight of the Pro 160A is designed to meet the users requirement
of a light weight product for all marine competition which weight is a factor
of speed and endurance. The core program for top-level competition
products guarantees the user first-class control and “abundant”
programmable parameter items for different competition environments.

Competition
Design

High Voltage Built-in BEC

The built-in switch mode BEC with a maximum output of 8Amp and switchable
voltage of 6V/7.4v make this ESC compatible with high voltage servo.

High Voltage
Built-in BEC

Innovative Turbo Function

The world’s first marine ESC to have implemented the turbo timing function which will
give the user the edge over the competition with instant turbo boost.

Innovative
Turbo Function

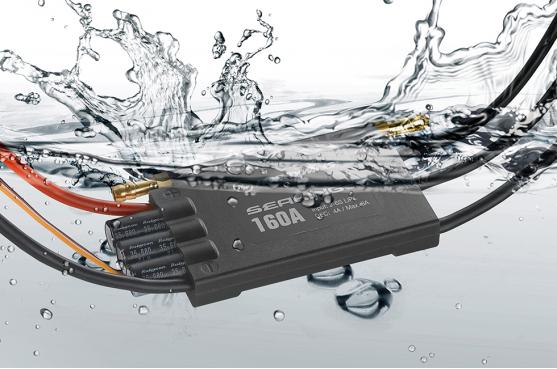

Waterproof Design

100% waterproof without the need of extra protection.

Waterproof
Design

Reliability and performance

Built with the highest quality components (eg. MOSFET’s with extremely low internal resistance)
and coupled with cutting-edge firmware, the Pro 160A is featured by enhanced current rating
and reliability. Multiple safety adjustable options are in use, with the implementation of the
low-voltage cutoff protection, thermal protection and throttle signal loss protection.

Reliability and
performance

Efficient Cooling system

TThe Hobbywing patented heat-conductive copper bar cover on the power board of
the ESC combined with the water cooling module efficiently and effectively
transfers heat to the outside thus keeping your ESC as cool as possible.

Efficient
Cooling system

Firmware Upgradeable

TThe Hobbywing patented heat-conductive copper bar cover on the power board of
the ESC combined with the water cooling module efficiently and effectively
transfers heat to the outside thus keeping your ESC as cool as possible.

Firmware
Upgradeable

Installation & Connection

1. Water Cooling Tube Connecting(Silicon tube needs to be provided by users.)
The aluminum water cooling tube (outer diameter = 5.5mm) has been pre-mounted on the ESC heatsink at factory. Please connect the silicon tube to the aluminum water cooling tube.
2. Motor Wiring

There is no polarity on the A/B/C wires between ESC and motor, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
3. Receiver Wiring
1) How to connect the throttle control cable
Plug the throttle control cable (also called Rx cable) on the ESC into the throttle (TH) channel on receiver. The RED wire in the throttle control cable will output the BEC voltage of 6V/7.4V to the receiver and servo, so please do not connect any additional battery to the receiver.
2) How to connect the Turbo Acceleration signal wire (/single YELLOW wire)
Plug the Turbo Acceleration signal wire of the ESC into any unoccupied channel (for example, CH3/CH4) on your receiver.
4. Battery Wiring
Proper polarity is essential here! Make absolutely sure positive (+) of ESC connects to positive (+) of battery, and negative (-) of ESC connects to negative (-) of battery when you plug in your battery! If reverse polarity is applied to your ESC from the battery, it will damage your ESC. This will NOT be covered under warranty!

Packaging

Product Name
Product Number
Type Brushed/Brushless

Waterproof
Specifications Cont./Peak Current

Input

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors

ESC Programing via Transmitter

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Firmware Firmware Upgrade
Size & Weight Size

I.D./O.D. of the Water Cooling Pipe

Weight
Applications
Product Name Seaking Pro 160A
Product Number 30302460
Type Brushed/Brushless

Waterproof
BL

WP
Specifications Cont./Peak Current

Input

BEC Output
160A/1050A

2-6S LiPo/6-18 Cells NiMH

Switch Mode:6V/7.4V,4A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors

Red-12AWG-200mm*1/Black-12AWG-200mm*1

Black-12AWG-150mm*3

No

No
ESC Programing via Transmitter

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Supported

Not Supported

Supported

Supported

Supported

Separate Program Wire
Firmware Firmware Upgrade Supported
Size & Weight Size

I.D./O.D. of the Water Cooling Pipe

Weight
108.5x51.5x14.4mm

Ф3.0/5.5 mm

127g

Applications Mono2 /Other Competition Boats (≤120cm)
