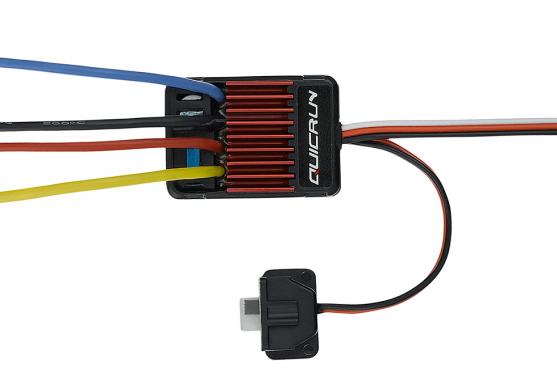

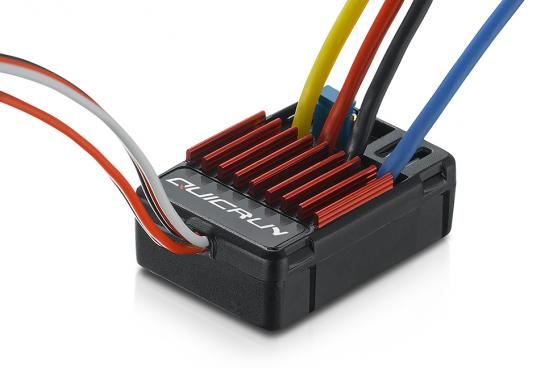

QuicRun WP 1625 Brushed



Easy Operation

This ESC is specially designed for new beginners and intermediate modelers;
it not only carries forward the outstanding quality of HOBBYWING products
but simplifies the operation.

Easy Operation

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QUICRUN WP-1625 Brushed to be used in all
weather conditions without any issue of damage caused to the ESC
from water or dust.

Applicable to All
Weather Conditions

High Reliability & Durability

Reliable hardware combined with advanced software technology allows
the QUICRUN WP-1625 Brushed to not only provide high power output but
also overload protection of the ESC circuit.

High Reliability
& Durability

Easy to Use

This ESC features auto throttle calibration and parameter setting via
jump caps is easy-to-use, especially applicable to new beginners.

Easy to Use

Wide Application

This ESC is designed for 1/16th, 1/18th scale touring cars,
buggies, monster trucks and trucks.

Wide Application

Programmable Items

Installation & Connection

Turn off the ESC switch, wire the battery, motor, ESC, servo, receiver according to the following diagram. Recheck the wiring to ensure all connections are correct before getting into the next step.
1) Once the power is wrongly connected (that means the battery polarity is mistakenly reversed ), irreparable damage may occur to the ESC and batteries. Therefore, please pay close attention to the battery polarity.
2) Please swap the two wire connections if the motor rotate in the opposite direction.

Packaging

Product Name
Product Number
Type Scale

Brushed/Brushless

Waterproof
Specifications Cont./Peak Current

Input

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Fan Size

Voltage Range

Powered by
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles

KV Rating/T Count
Product Name QuicRun WP 1625 Brushed
Product Number 30120000
Type Scale

Brushed/Brushless

Waterproof		 1/16th,1/18th

Brushed

WP
Specifications Cont./Peak Current

Input

BEC Output		 25A/100A

2-3S LiPo/6-9 Cells NiMH

Linear Mode:6V/1A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors		 Red-18AWG-75mm*1/Black-18AWG-75mm*1

Blue-18AWG-75mm*1/Yellow-18AWG-75mm*1

Small-sized TAMIYA Connector

4.0 Bullet Connectors (Female)
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port		 Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Jumper Cap
Fan Size

Voltage Range

Powered by		 No

No

No
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight		 34.0x24.0x14.0mm

24g
Applications Motors

Vehicles

KV Rating/T Count		 Brushed Motors

1/16th, 1/18th Touring Cars/Buggies/Monster Trucks

2S LiPo: RPM≤30000

3S LiPo: RPM≤20000

(280/370/380 Size Motors)
