QuicRun Fusion BL SYS for Crawler-540 Spec
Overview Specifications Support Accessories Detail

Integrated design of Hobbywing's patent technology

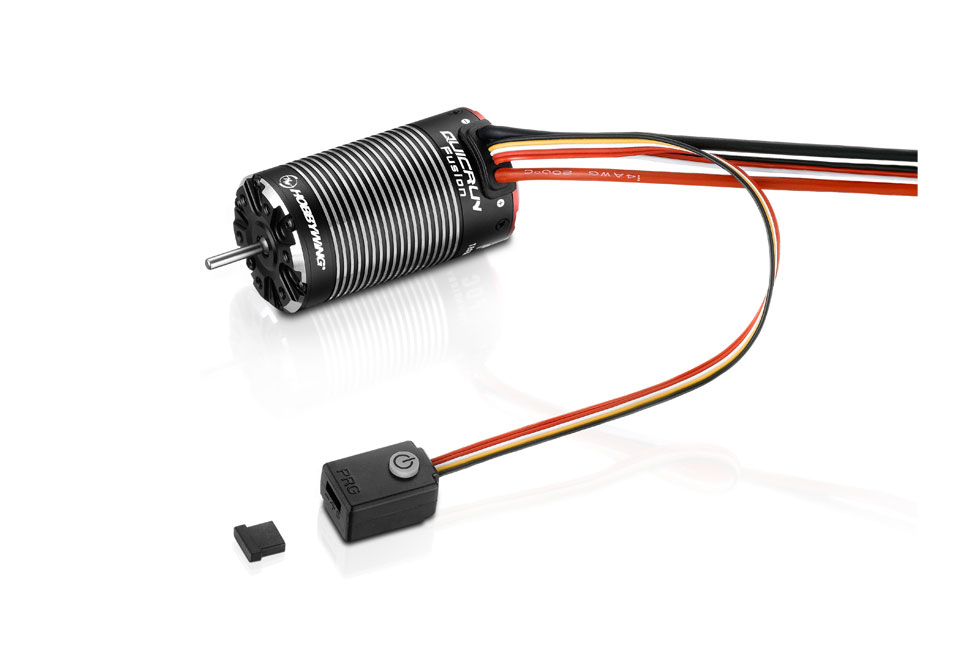

The integrated design of the ESC makes the overall volume is only the size of 550 motor, and the overall weight is only 201g, which makes the layout and wiring of car frame simpler and more beautiful, perfectly solves the difficulty of wiring due to the small internal space of rock crawler.
Application No. CN201921921821 .3

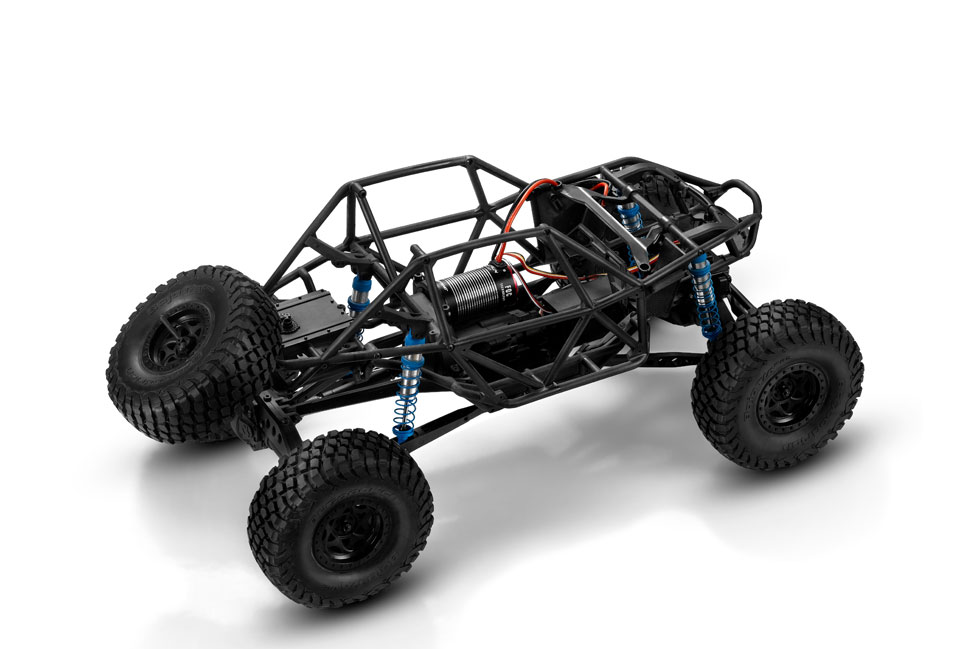

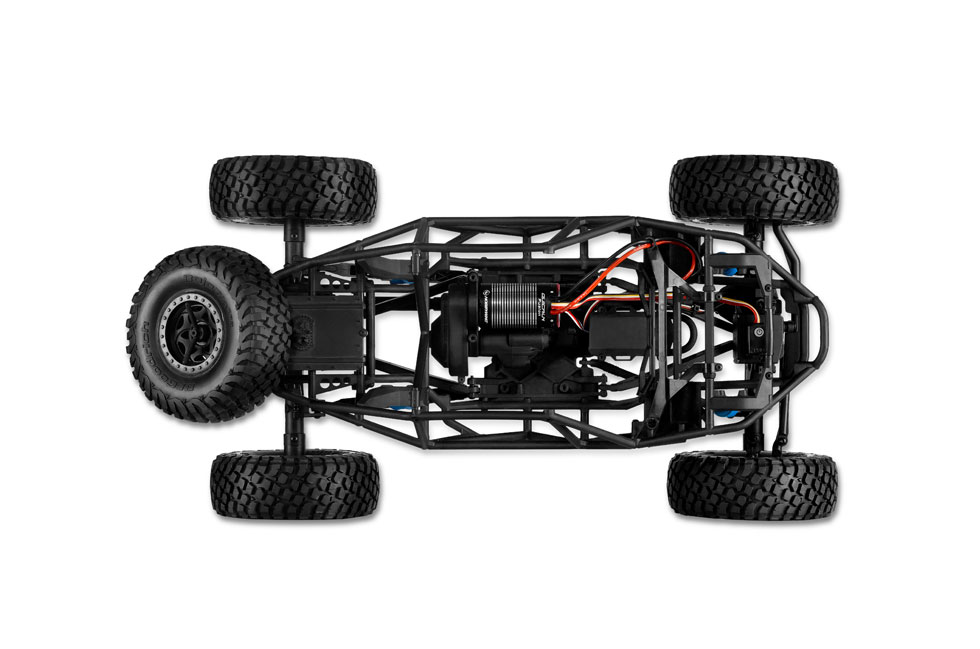

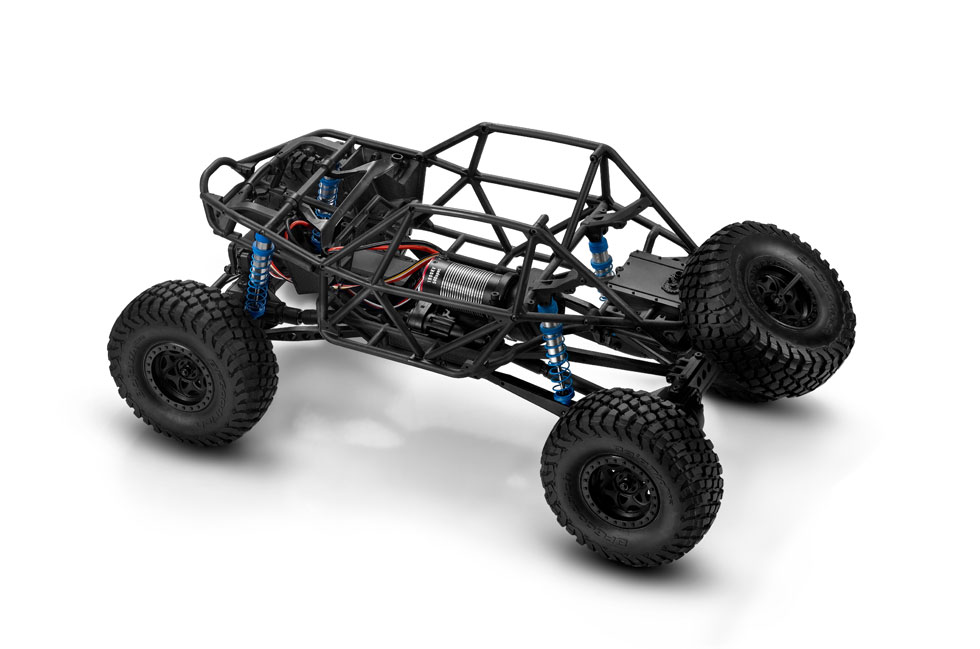

Perfectly solves the problem of
difficult wiring for the small
internal space of rock crawler

Intelligent Torque Output & Speed Closed-loop Control for Easy Control

The Fusion system combined with Intelligent Torque output and closed loop speed control mean the power system will maintain the motor’s Torque level and RPM as the vehicles conditions change. Uphill, downhill, under load, the intelligent output torque makes the operation so simple.
Note：If the“RPM/Throttle Matching”be set to “Disabled”, no intelligent torque output & speed closed-loop control, just like brushed system.

Intelligent
Torque Output

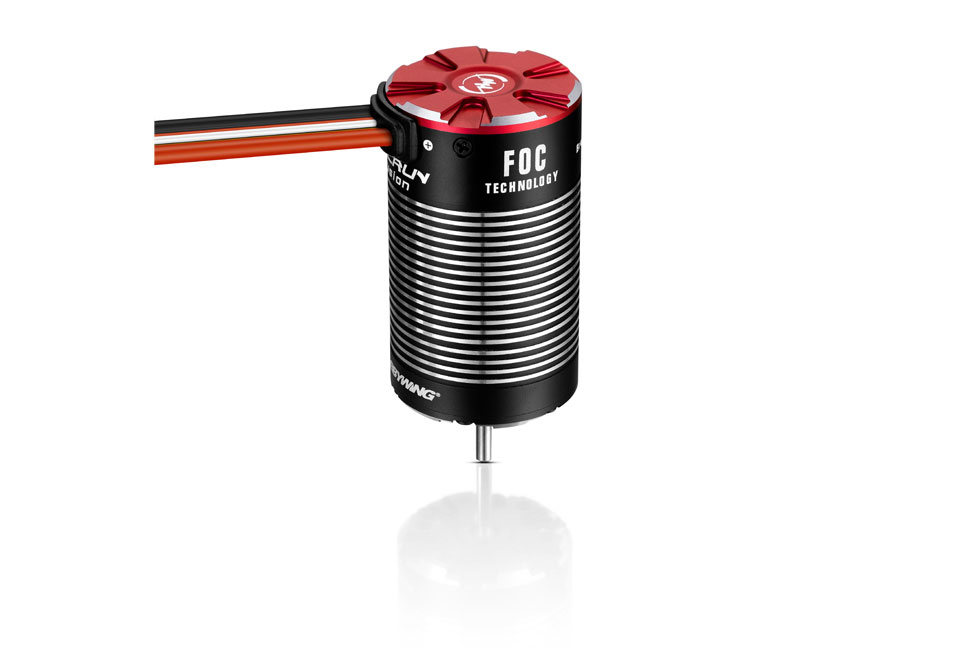

FOC (Field-oriented Control)
for Super Linearity &
HighTorque & Extreme Mute

The Fusion system adopts FOC driving mode, low speed torque is strong. It runs smoothly at very low speed, outstripping ordinary sensored power system, even better than brushed power system. Moreover, the motor is extremely silent when it is running. The driving noise which annoys driver disappears. It is the best choice for rock crawler.

FOC for
Super Linearity

Applicable to All Weather & Track Conditions

The IP-67 waterproof of the whole power has excellent waterproof and dustproof performance. The whole power can easily drive on the muddy, sandy, icy, snowy and water track under various weather conditions.

Applicable to All Weather
& Track Conditions

High Driving Efficiency for Long Battery Life

The whole power adopts FOC driving which has high efficiency and less heat, dramatically extends the Runtime time. Benefitting from the sine wave driving mode, the motor runs more silently and softly.

High Driving Efficiency for
Long Battery Life

Professional Drag Brake Adjustments
& Super Parking Capacity

8 gears of drag brake force and 9 gears of drag brake rate can meet different car models, different fields and different controlling habits. The maximum drag brake force is about twice that of ordinary brushless power of the same size, providing super strong parking capacity on slope.

Professional Drag
Brake Adjustments
& Super Parking Capacity

Advanced and Secure Electronic Switch

Compare to standard on/off switches, the dust, dirt, and waterproof electronic switch housing ensures a long reliable life for your power system, will not suffer from the problems that reed stuck and contact rust frequently happed in dusty and damp environment, and the problem that mechanical switch closes automatically caused by fierce impact.

Advanced and Secure
Electronic Switch

Product Name QuicRun Fusion BL SYS for Crawler-540 Spec
Product Number 30120400(1200KV),30120401(1800KV)
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/10th

Brushless

Sensored

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output

Motor KV

Diameter/length of Motor

Shaft diameter / exposed shaft length

Motor Poles

 40A/160A

2-3S Lipo/6-9 Cell NiMH

6V/7.4V adjustable, continuous curr ent 4A (Switch mode)

1200KV,1800KV

36mm/64mm

3.175mm/16mm

4
Wires & Connectors Input Wires

Input Connectors		 Red-14AWG-200mmx1 / Black-14AWG-200mmx1

XT60
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

Program Port		 Not Supported

Supported

Not Supported

Not Supported

Independent programming interface(switch position)
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight		 36*64mm

201g (including wir e plug)
Applications Vehicles Various 1/10th rock crawler
Product Name QuicRun Fusion BL SYS for Crawler-540 Spec
Product Number 30120400(1200KV),30120401(1800KV)
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/10th

Brushless

Sensored

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output

Motor KV

Diameter/length of Motor

Shaft diameter / exposed shaft length

Motor Poles

 40A/160A

2-3S Lipo/6-9 Cell NiMH

6V/7.4V adjustable, continuous curr ent 4A (Switch mode)

1200KV,1800KV

36mm/64mm

3.175mm/16mm

4
Wires & Connectors Input Wires

Input Connectors		 Red-14AWG-200mmx1 / Black-14AWG-200mmx1

XT60
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

Program Port		 Not Supported

Supported

Not Supported

Not Supported

Independent programming interface(switch position)
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight		 36*64mm

201g (including wir e plug)
Applications Vehicles Various 1/10th rock crawler
