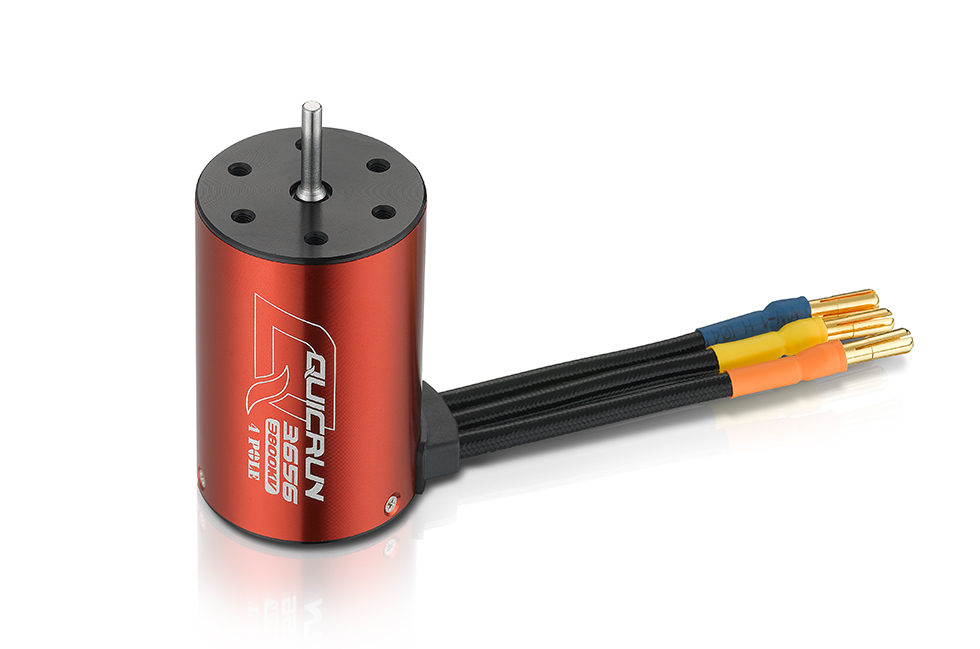

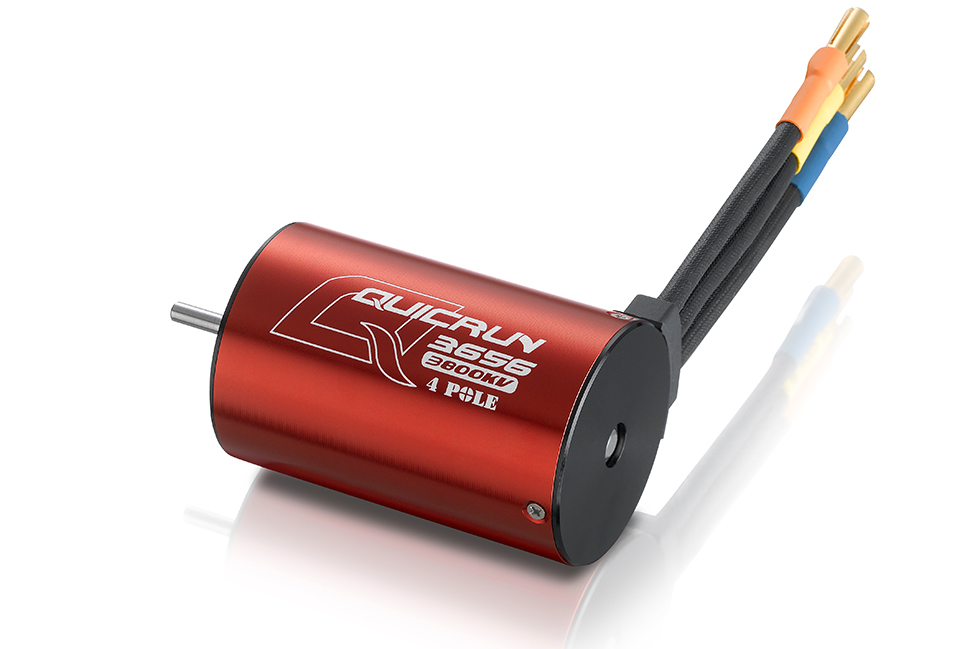

QuicRun 3656

Great Construction

The use of a heat-resistant magnet attached steel case and double insulated windings,
high precision bearings, and rotor with a strong structure guarantees outstanding
performance and super durability.

Great Construction

High Torque

The 4 pole design will guarantee the motor to produce very large amounts of torque,
a much faster acceleration response and a very stable output of
power to the drivetrain.

High Torque

Dustproof Design

The dustproof design implemented at the load end of the motor makes
this QUICRUN 3656 motor applicable for monster trucks &
short-course trucks.

Dustproof Design

Cost-effective

The QUICRUN-3656 is an inexpensive motor but applicable to
1/10th off-road scale vehicles.

Cost-effective

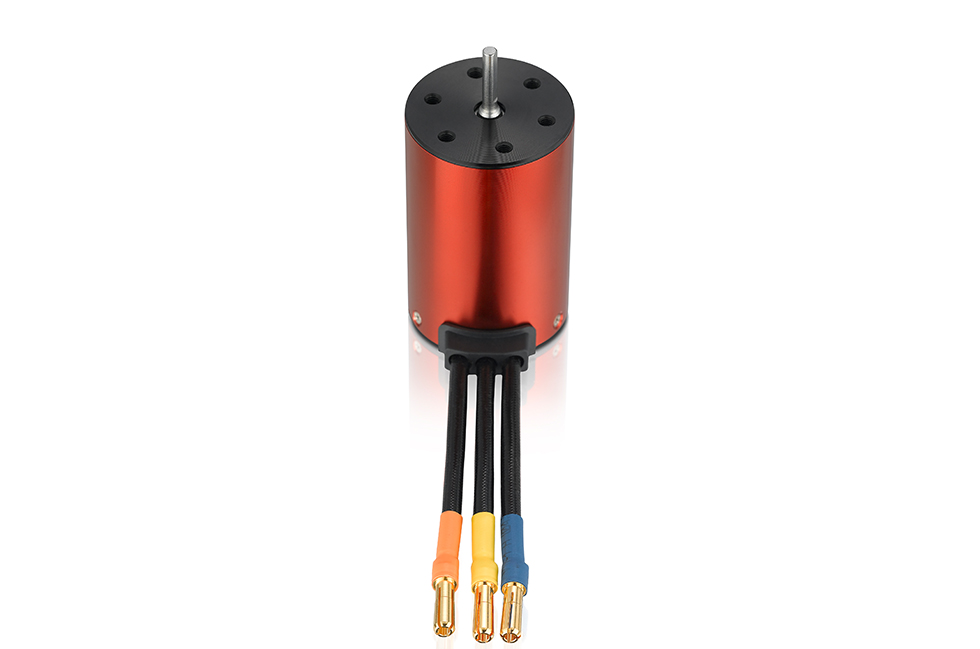

Plug and Play

Pre-soldered with high-quality gold connectors on motor leads,
the QUICRUN3656 motor is definitely a plug and play.

Plug and Play

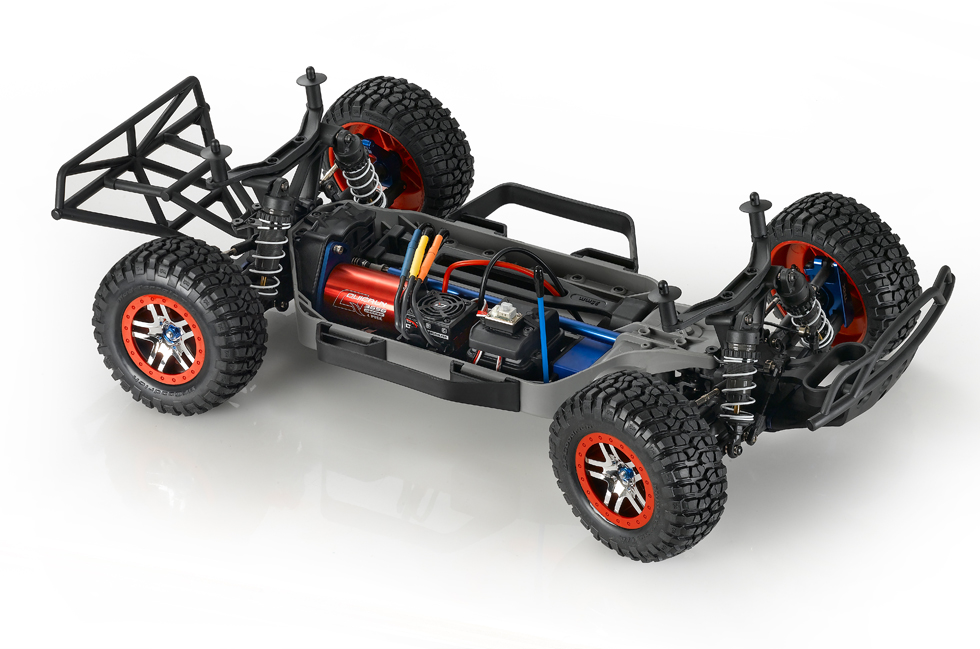

Wide Application

The QUICRUN 3656 is applicable to 1/10th scale short-course trucks,
buggies, trucks, and monster trucks.

Wide Application

Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Specifications KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Current at the Point of Max. Power Output(A)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)
Other Parameters Timing

Applications
Product Name QuicRun 3656SL-3800KV
Product Number 30404100
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count		 1/10th

BL

SL

4
Specifications KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Current at the Point of Max. Power Output(A)		 3800

2-3S

2.3

420

110A
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)		 36.0

56.0

3.175

232
Other Parameters Timing

Applications		 0

1/10th Touring Cars/Buggies/Trucks/Monster Trucks
