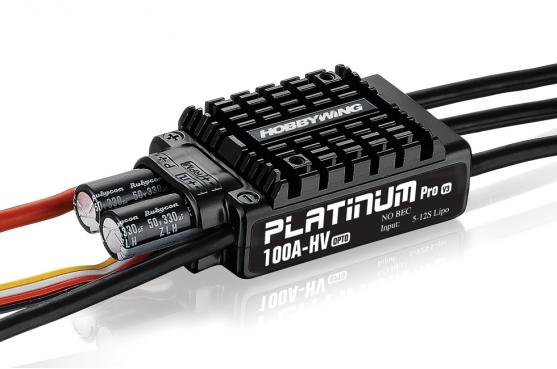

Platinum HV 100A OPTO V3

Overview
Specifications
Support
Accessories
Detail

Great Power Output

This Platinum HV 100A OPTO V3 ESC can output a continuous current
of 100A and peak current of up to 140A.

Great
Power Output

New Design & Excellent Performance

New structure design combined with high-performance micro-processor guarantees
users efficient heat dissipation, good compatibility (with various motors),
high driving efficiency, and etc.

Excellent
Performance

High-voltage Battery Packs Supported

This HV 100A OPTO V3 ESC is intended for the operation of 6-12S LiPo battery packs.

High-voltage Battery
Packs Supported

Four Flight Modes & “Auto Restart” Function

This ESC featuring “Fixed-wing/Helicopter (Linear Throttle)/Helicopter
(Elf Governor)/Helicopter (Store Governor)” four flight modes and “Auto
Restart (Time)” function guarantees users excellent speed-governing
performance in Heli Governor mode and allows users to cutoff output and restart
motor for avoiding possible crash caused
by improper operation.

Multiple Protections

Multiple protection features include abnormal input voltage, ESC thermal,
throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service
life of the ESC.

Multiple Protections

Other Features

A separate program port for connecting programmer on this ESC allows user to
● program ESC;
● upgrade ESC firmware (multifunction LCD program box is required);
● monitor/record flight data in real time (with a data transmission module);

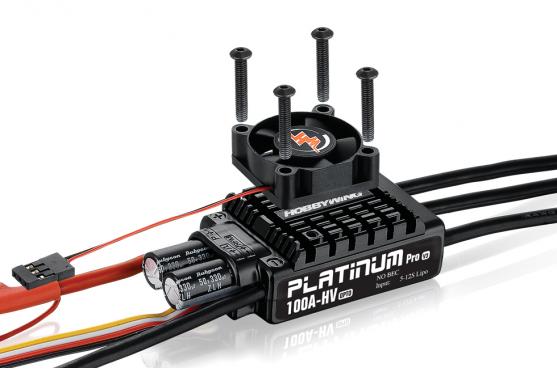

● power the extra cooling fan (included in product box).

Other Features

Product Name
Product Number
Type	Brushed/Brushless High Voltage/Regular
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module Program Port
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications

Product Name		Platinum HV 100A OPTO V3
Product Number		30203600
Type	Brushed/Brushless High Voltage/Regular	BL HV
Specifications	Cont./Peak Current Input BEC Output	100A/140A 5-12S LiPo No
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Red-12AWG-150mm1/Black-12AWG-150mm1 Black-12AWG-100mm*3 No No
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module Program Port	Supported Not Supported Not Supported Supported Supported Separate Program Port
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	77.0x35.0x21.0mm 104g
Applications		550-600 Class Heli 3D, .90-.140 Class Airplane 3D, Light Weight FAI F3A

Support

Manuals & Documents

Manuals

Software Download

Application Guidance

HobbyWing Platinum V4 ESCs Speed-governing Function

UBEC 10A-Car

Part Number: 30603003
Model: UBEC 10A-Car

S.BUS2 Telemetry Adapter for Futaba

Part Number: 30850500
Size: 25x13x6mm
Applications: Some of Platinum V4/V4.1/V5
series aircraft ESC ;
Some of XeRun series of car ESCs.
* For details, please refer to ESC manual to
ensure if the ESC can work with this device.

Signal Coupler

Part Number: 30850200
Size: 45.4x11.6x7.7mm（LxWxH）
Only for OPTO version

UBEC 8A (2-3S)

Part Number: 86010030
Size: 42x39x9mm (LxWxH)
Applications: Nitro helicopters (30 class
above) & large scale fixed wing

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs
