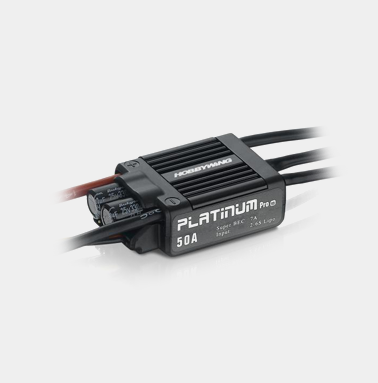

Platinum 50A V3

New Design & Excellent Performance

New structure design combined with high-performance micro-processor
guarantees users efficient heat dissipation, good compatibility (with various motors),
high driving efficiency, and etc.

New Design &
Excellent Performance

Great Power Output

This Platinum 50A V3 ESC can output a continuous current of 50A and peak
current of up to 75A.

Great Power
Output

Super Built-in BEC

The built-in switch mode BEC with a voltage adjustable
among 5.2V/6.0V/7.4V, a continuous current of 7A and peak current of 15A
can supply enough power for your servos to operate efficiently.

Super Built-in BEC

Four Flight Modes & “Auto Restart” Function

This ESC featuring “Fixed-wing/Helicopter (Linear
Throttle)/Helicopter (Elf Governor)/Helicopter (Store Governor)”
four flight modes and “Auto Restart (Time)” function guarantees
users excellent speed-governing performance in Heli Governor mode
and allows users to cutoff output and restart motor for avoiding possible
crash caused by improper operation.

Multiple Protections

Multiple protection features include abnormal input voltage,
ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the
service life of the ESC.

Multiple Protections

Other Features

A separate program port for connecting programmer on this ESC allows user to：
● program ESC;
● upgrade ESC firmware (multifunction LCD program box is required);
● monitor/record flight data in real time (with a data transmission module).

Other Features

Product Name
Product Number
Type Brushed/Brushless

High Voltage/Regular
Specifications Cont./Peak Current

Input

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

Program Port
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications
Product Name Platinum 50A V3
Product Number 30215101
Type Brushed/Brushless

High Voltage/Regular		 BL

Regular
Specifications Cont./Peak Current

Input

BEC Output

 50A/75A

2-6S LiPo

Switch Mode:5.2V/6V/7.4V,7A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors		 Red-14AWG-100mm*1/Black-14AWG-100mm*1

Black-14AWG-75mm*3

No

3.5mm Gold Connectors (Female)
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

Program Port		 Supported

Not Supported

Not Supported

Supported

Supported

Separate Program Port
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight		 48.0x30.0x15.5mm

49g
Applications 450-450L Class Heli 3D (Main Blade: 325-380mm),.50 Class Airplane Sport
Support

Manuals & Documents

Manuals

Software Download

FAQ

UBEC 10A-Car

UBEC 10A-Car

Part Number: 30603003
Model: UBEC 10A-Car

+
UBEC 5A

UBEC 5A

ProductNumber：30607000
Model：UBEC 5A

+
Signal Coupler

Signal Coupler

Part Number: 30850200
Size: 45.4x11.6x7.7mm（LxWxH）
Only for OPTO version

+

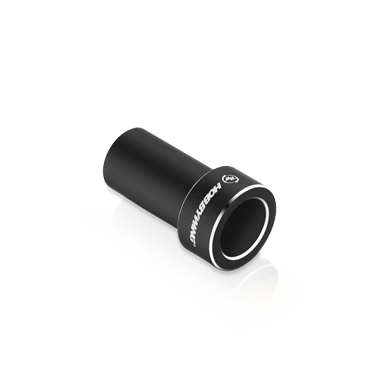

Rotor Replacement Tool
