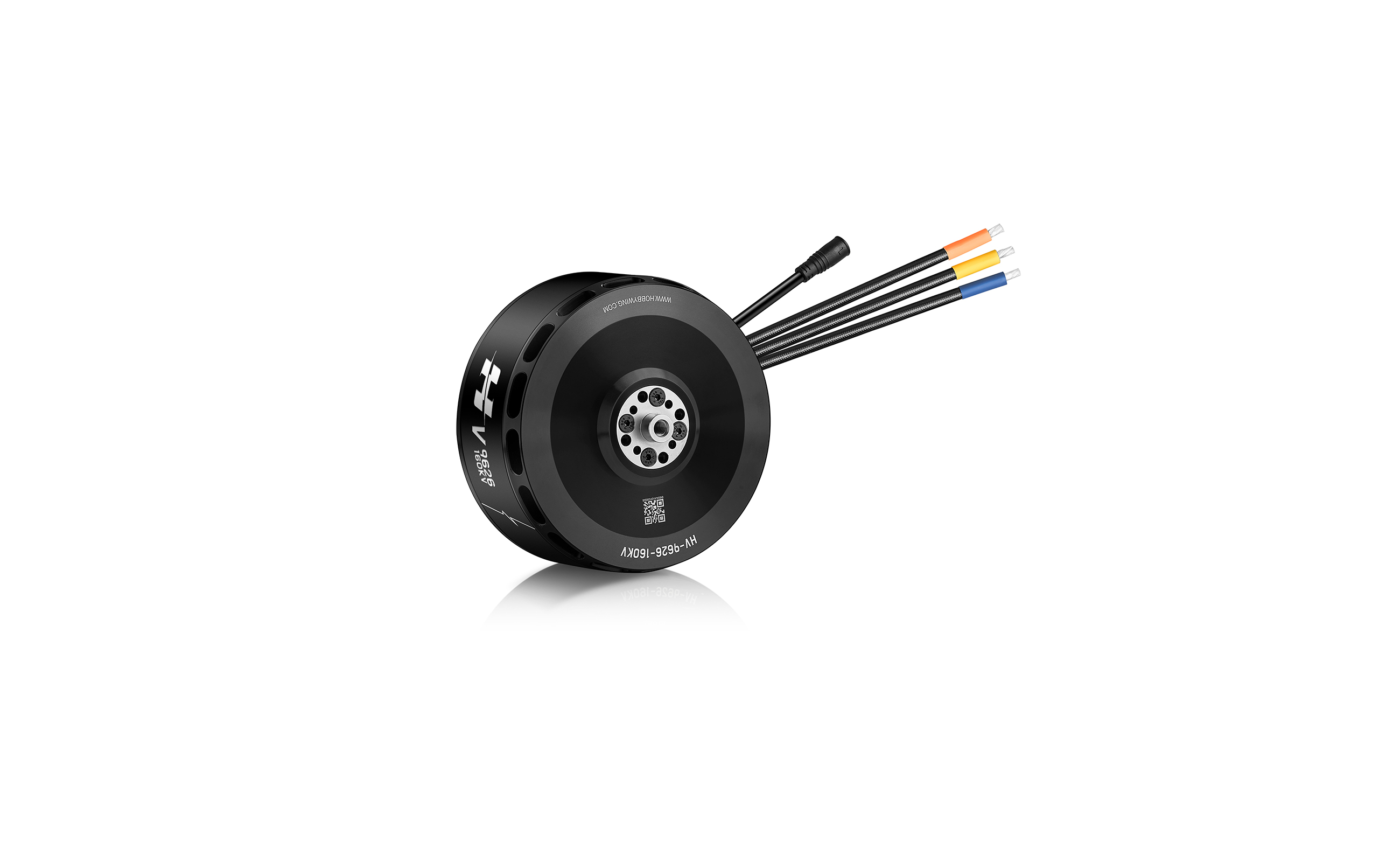

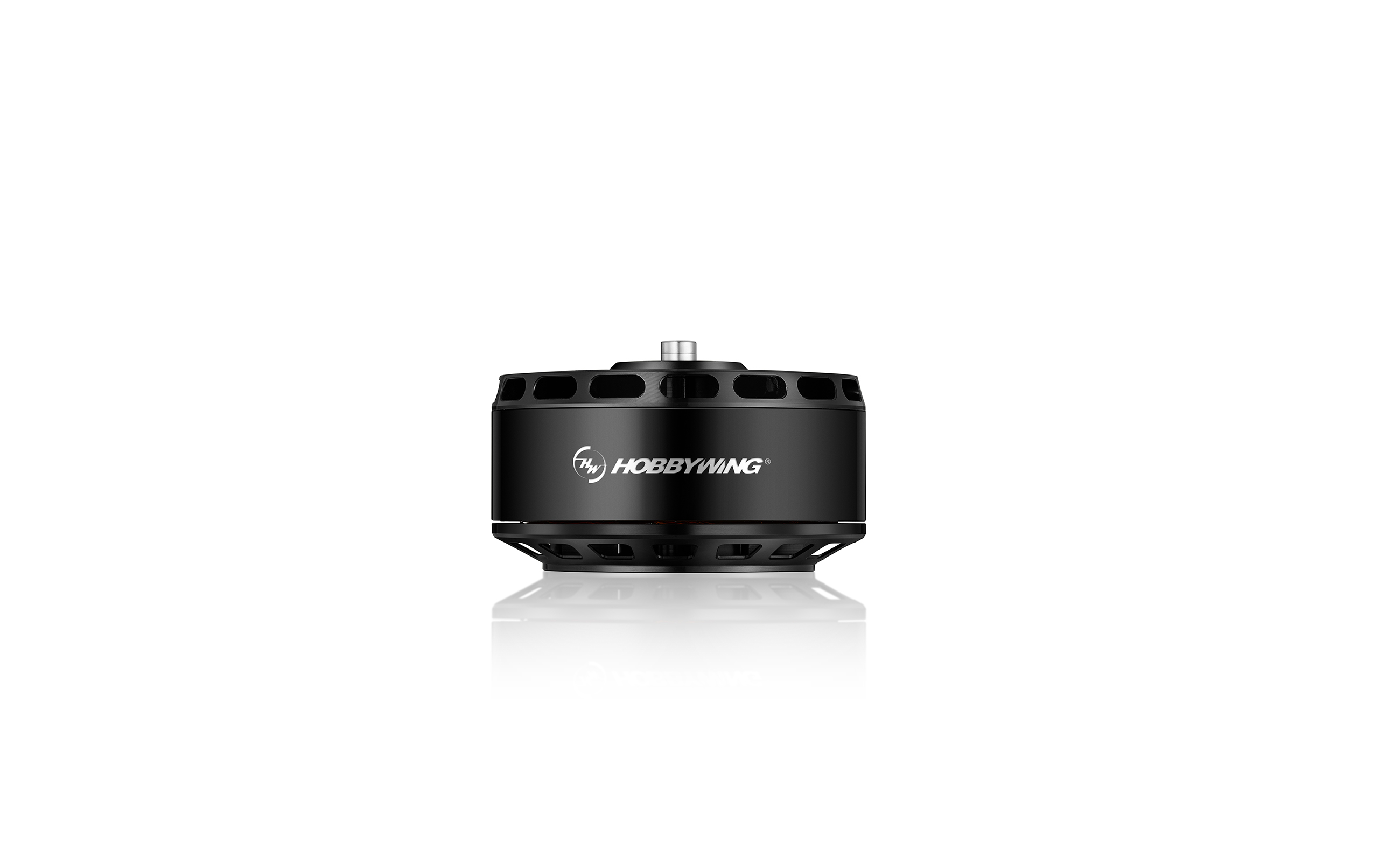

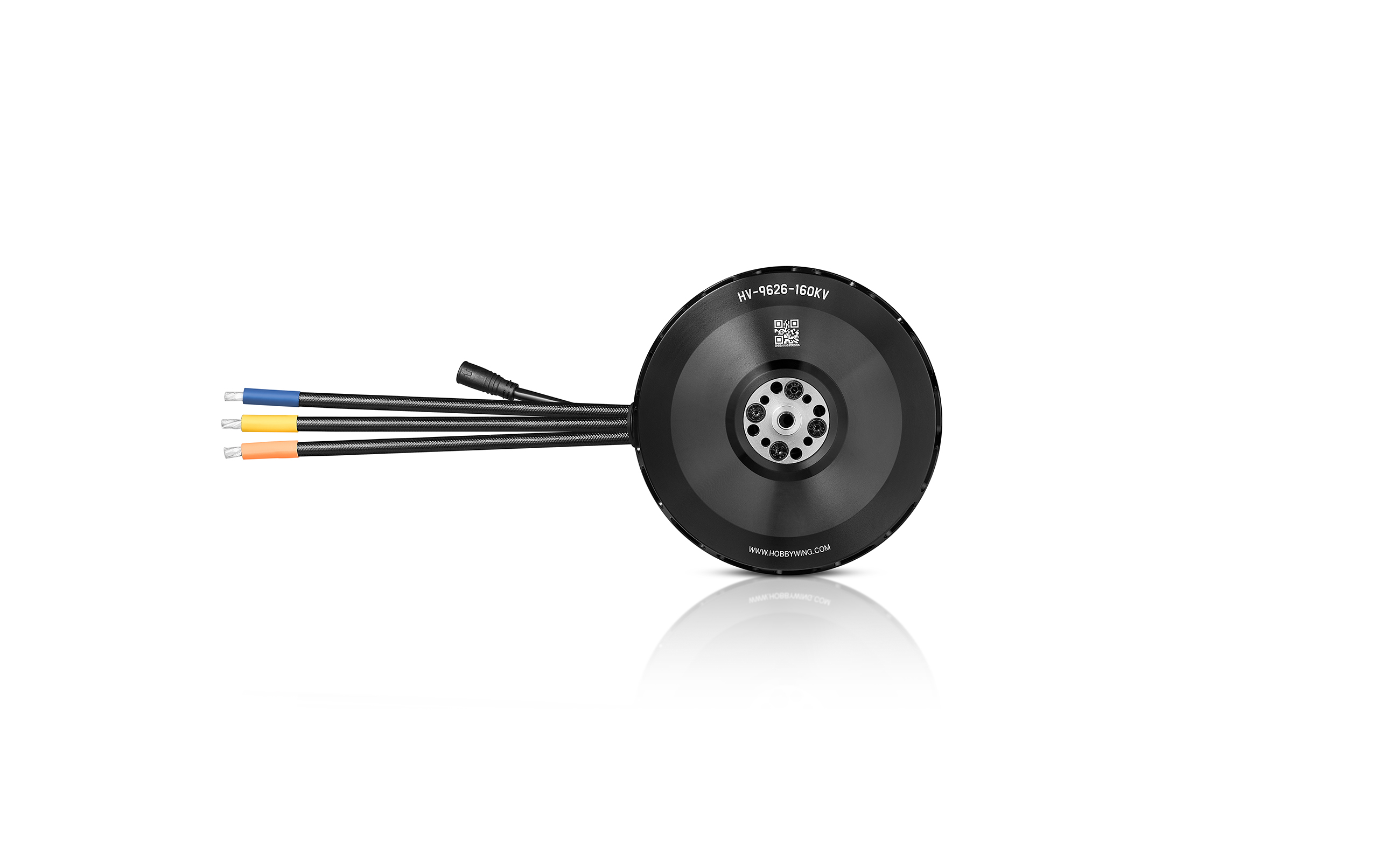

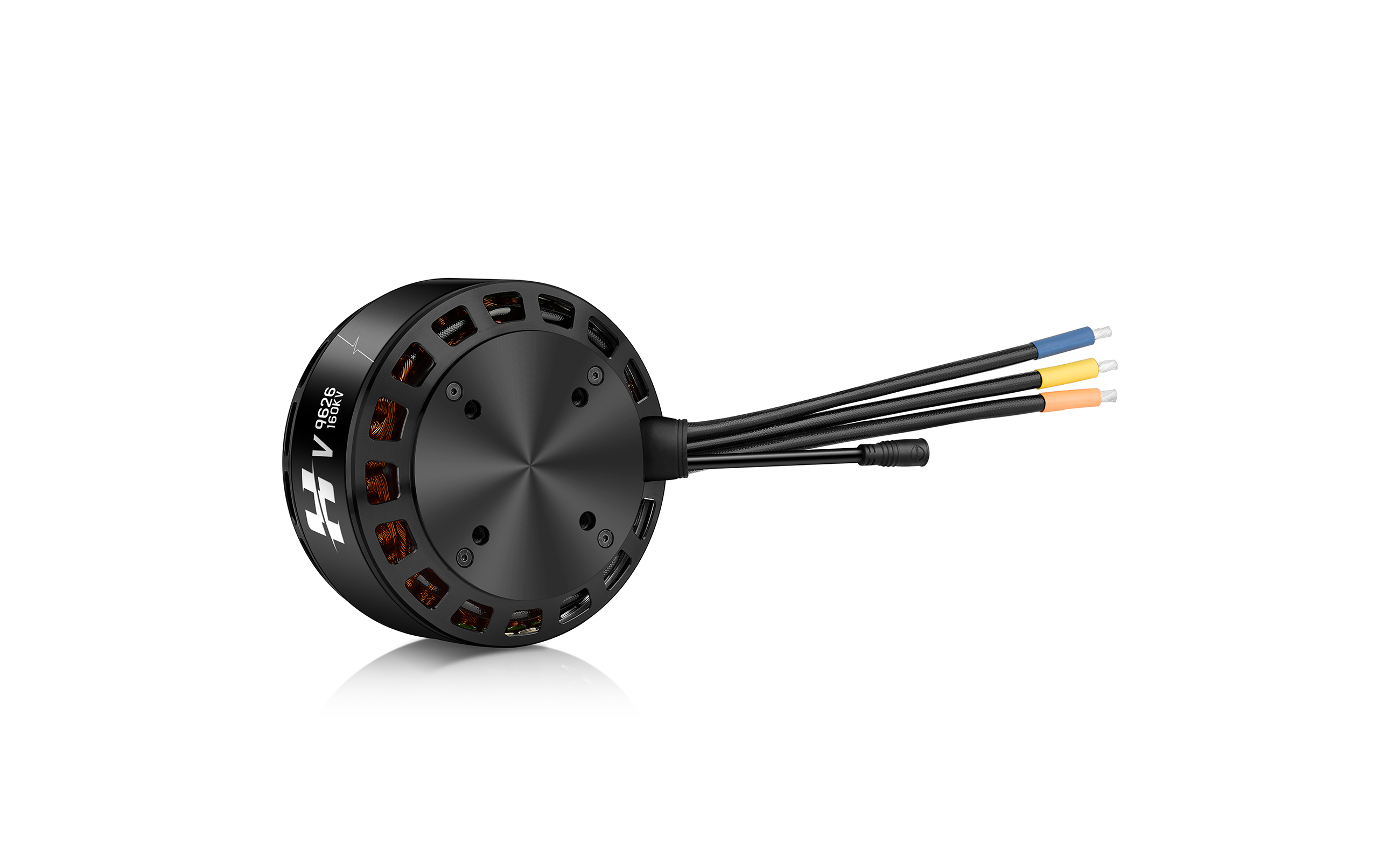

Buy V9626 160KV
VTOL rotor power series motors
- RC Systems
RC Cars Power SystemRC Plane Power SystemRC Boat Power SystemAccessories
- Drone Systems
Agricultural ApplicationsIndustryAccessories
- Personal Travel Systems
Electric SkateboardElectric ScooterPersonal Travel Accessories
- Service and Support
-
Heavy Load,
Highly Reliable
-
The motor weighs
975g -
A maximum thrust of
38.5Kg (Tested by the 160KV motor equipped
with GP32*10.5" propellers under 46V
at full throttle in the laboratory)
-
It is suitable for VTOL
with a take-off weight of
65kg (conventional four-rotor VTOL layout) -
The thrust-to-weight ratio
is able to reach
39 : 1
Optimized Magnetic Circuit,
Improved Performance
Improved Performance
Ensures that the motor has both high torque and strong explosive power.
The fixed propeller is flexible,
it is suitable for a variety of
propellers
it is suitable for a variety of
propellers
Intelligent Propeller Control(IPC)
is low in power consumption with precision positioning.
The stop positioning of the propeller is able to
reduce the cruising resistance
and significantly improve flight time with a Hobbywing ESC.
The installation interface is standardized in order to
meet a variety of conventional installation needs.
is low in power consumption with precision positioning.
The stop positioning of the propeller is able to
reduce the cruising resistance
and significantly improve flight time with a Hobbywing ESC.
The installation interface is standardized in order to
meet a variety of conventional installation needs.
Recommended
Combinations
Combinations
- Motor
V9626 160KV - Propeller
30*9.8"/32*10.5" - ESC
XRotor Pro-H200A-14S-BLDC-IPC
- Battery
12S LiPo - Thrust/Rotor
12~16kg - Maximum Take-off Weight/Quadrotor
50~64kg
V9626 160KV CAD
| Model |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Recommended application combinations |
|
V9626 160KV + 30*9.8" Load performance parameters
V9626 160KV + 30*9.8" Motor Propeller Pull Test Data
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|
|
46V (12S LiPo) |
30*9.8" |
33% |
4578 |
11.2 |
514.0 |
2349 |
8.9 |
1.25 |
83.2°C |
|
35% |
5109 |
12.7 |
585.2 |
2479 |
8.7 |
1.41 |
|||
|
37% |
5667 |
14.4 |
663.9 |
2608 |
8.5 |
1.59 |
|||
|
39% |
6250 |
16.3 |
750.0 |
2735 |
8.3 |
1.77 |
|||
|
42% |
7163 |
19.4 |
892.6 |
2921 |
8.0 |
2.05 |
|||
|
45% |
8119 |
22.8 |
1051.1 |
3100 |
7.7 |
2.34 |
|||
|
48% |
9113 |
26.6 |
1225.1 |
3273 |
7.4 |
2.64 |
|||
|
51% |
10145 |
30.7 |
1414.6 |
3440 |
7.2 |
2.96 |
|||
|
54% |
11213 |
35.2 |
1619.9 |
3602 |
6.9 |
3.28 |
|||
|
57% |
12318 |
40.0 |
1841.8 |
3761 |
6.7 |
3.62 |
|||
|
60% |
13464 |
45.2 |
2081.4 |
3917 |
6.5 |
3.97 |
|||
|
63% |
14652 |
50.9 |
2340.2 |
4072 |
6.3 |
4.33 |
|||
|
66% |
15885 |
56.9 |
2620.1 |
4226 |
6.1 |
4.71 |
|||
|
69% |
17166 |
63.5 |
2923.4 |
4381 |
5.9 |
5.11 |
|||
|
72% |
18498 |
70.7 |
3252.9 |
4535 |
5.7 |
5.53 |
|||
|
75% |
19884 |
78.5 |
3611.1 |
4689 |
5.5 |
5.98 |
|||
|
78% |
21324 |
86.9 |
4001.1 |
4842 |
5.3 |
6.45 |
|||
|
81% |
22818 |
96.2 |
4425.5 |
4992 |
5.2 |
6.94 |
|||
|
84% |
24366 |
106.2 |
4886.4 |
5138 |
5.0 |
7.47 |
|||
|
87% |
25962 |
117.0 |
5384.6 |
5279 |
4.8 |
8.02 |
|||
|
90% |
27603 |
128.6 |
5919.7 |
5414 |
4.7 |
8.59 |
|||
|
100% |
32977 |
169.5 |
7800.5 |
5828 |
4.2 |
10.46 |
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.。
V9626 160KV + 32*10.5"Load performance parameters
V9626 160KV + 32*10.5" Motor Propeller Pull Test Data
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|
|
46V (12S LiPo) |
32*10.5" |
33% |
5823 |
13.9 |
638.1 |
2286 |
9.1 |
1.75 |
87.1°C |
|
35% |
6480 |
15.8 |
725.4 |
2406 |
8.9 |
1.96 |
|||
|
37% |
7171 |
17.9 |
823.6 |
2526 |
8.7 |
2.18 |
|||
|
39% |
7889 |
20.3 |
932.3 |
2646 |
8.5 |
2.41 |
|||
|
42% |
9009 |
24.2 |
1113.8 |
2821 |
8.1 |
2.77 |
|||
|
45% |
10170 |
28.6 |
1315.9 |
2992 |
7.7 |
3.14 |
|||
|
48% |
11365 |
33.4 |
1536.9 |
3157 |
7.4 |
3.53 |
|||
|
51% |
12589 |
38.6 |
1775.8 |
3317 |
7.1 |
3.92 |
|||
|
54% |
13841 |
44.2 |
2032.2 |
3472 |
6.8 |
4.32 |
|||
|
57% |
15123 |
50.1 |
2306.5 |
3623 |
6.6 |
4.72 |
|||
|
60% |
16439 |
56.5 |
2599.5 |
3772 |
6.3 |
5.14 |
|||
|
63% |
17793 |
63.3 |
2913.1 |
3919 |
6.1 |
5.57 |
|||
|
66% |
19191 |
70.6 |
3249.6 |
4065 |
5.9 |
6.01 |
|||
|
69% |
20638 |
78.5 |
3612.0 |
4210 |
5.7 |
6.48 |
|||
|
72% |
22140 |
87.0 |
4003.7 |
4355 |
5.5 |
6.97 |
|||
|
75% |
23703 |
96.2 |
4428.4 |
4500 |
5.4 |
7.48 |
|||
|
78% |
25329 |
106.2 |
4889.8 |
4645 |
5.2 |
8.03 |
|||
|
81% |
27020 |
117.1 |
5391.4 |
4788 |
5.0 |
8.61 |
|||
|
84% |
28776 |
129.0 |
5935.7 |
4929 |
4.8 |
9.22 |
|||
|
87% |
30592 |
141.7 |
6523.8 |
5066 |
4.7/p> |
9.86 |
|||
|
90% |
32463 |
155.4 |
7154.1 |
5200 |
4.5 |
10.53 |
|||
|
100% |
38584 |
202.9 |
9340.0 |
5598 |
4.1 |
12.59 |
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.。
