V6215 210KV & 6212 180KV
Buy
6215-210KV & 6212-180KV
V Series - Specifically Designed for VTOL
It is an optimal solution for reliability and stability
based on high-performance VTOL
fixed-wing platforms.
Light Weight with large thrust
The optimized magnetic circuit design ensures that the motor
delivers strong torque burst and is suitable for VTOL applications.
Compared with competing products of the same specifications, the weight is reduced by 10%.

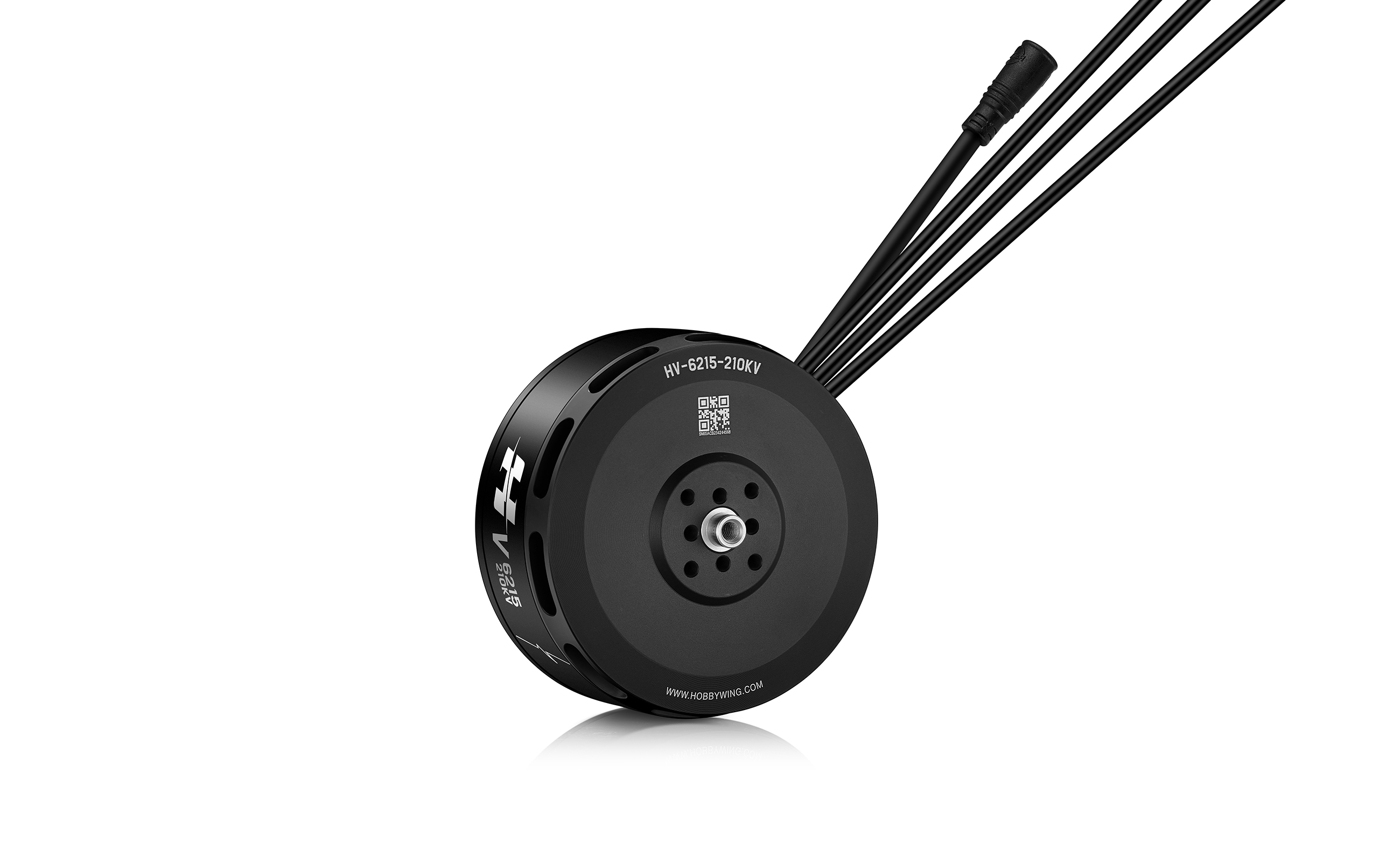

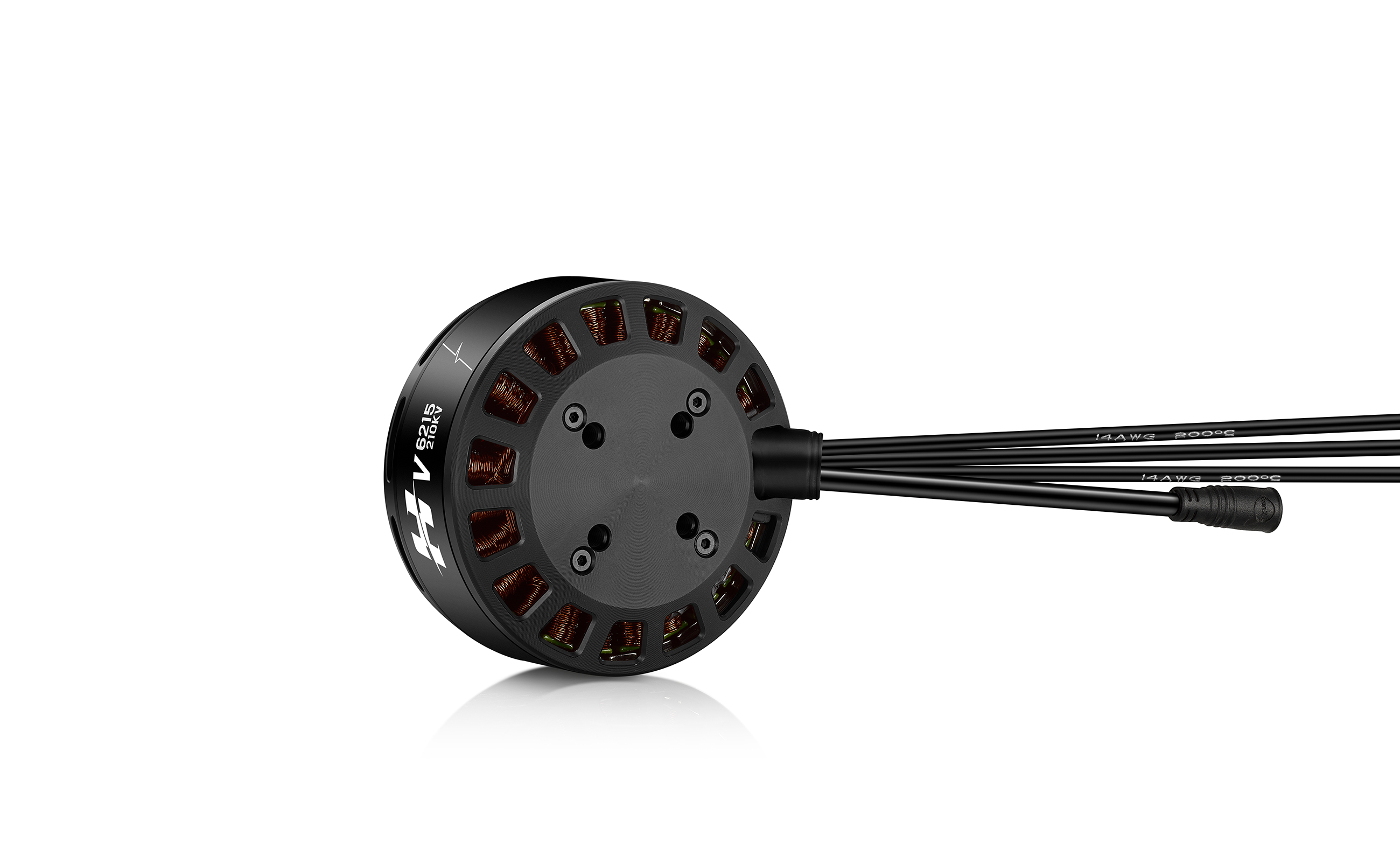

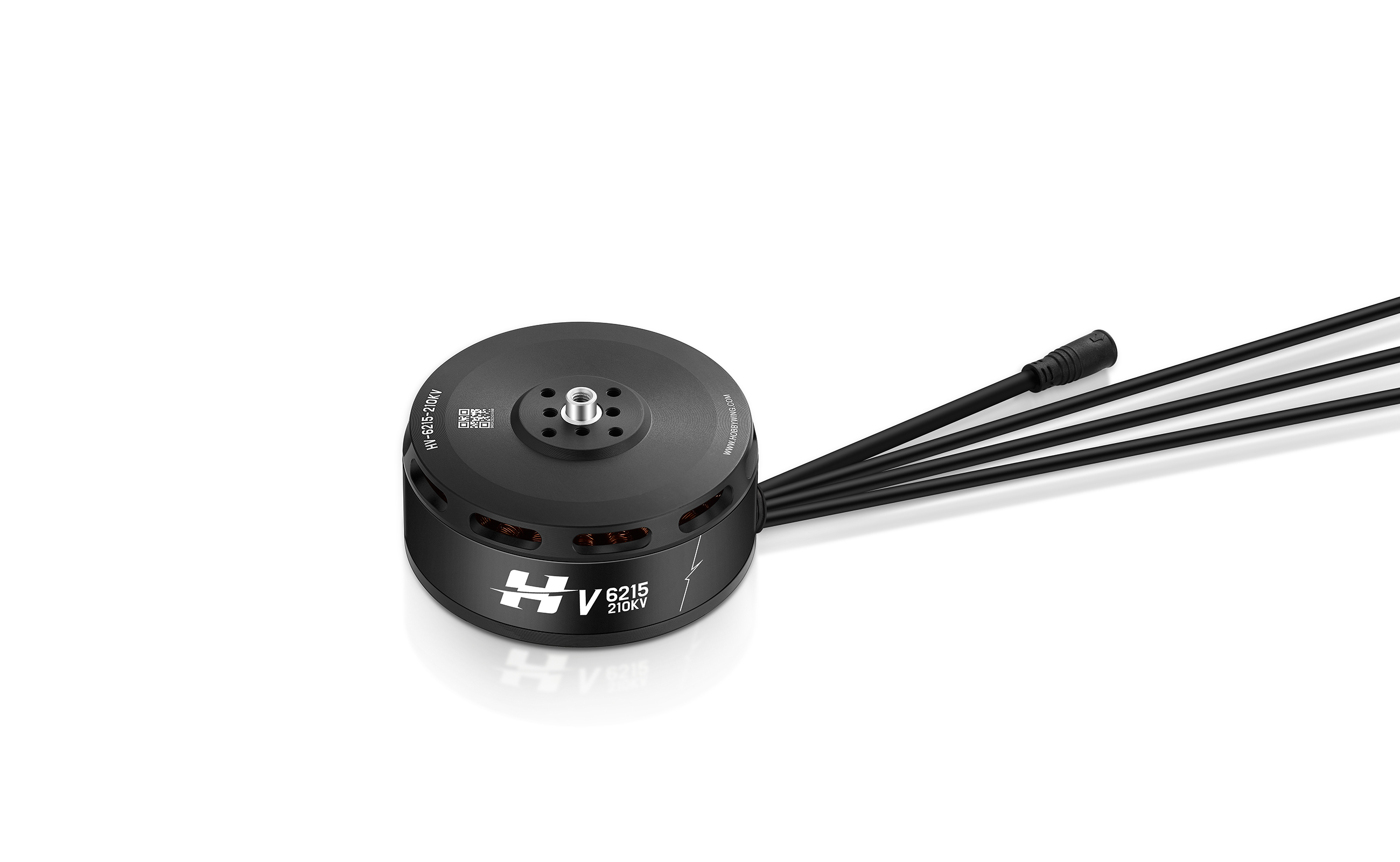

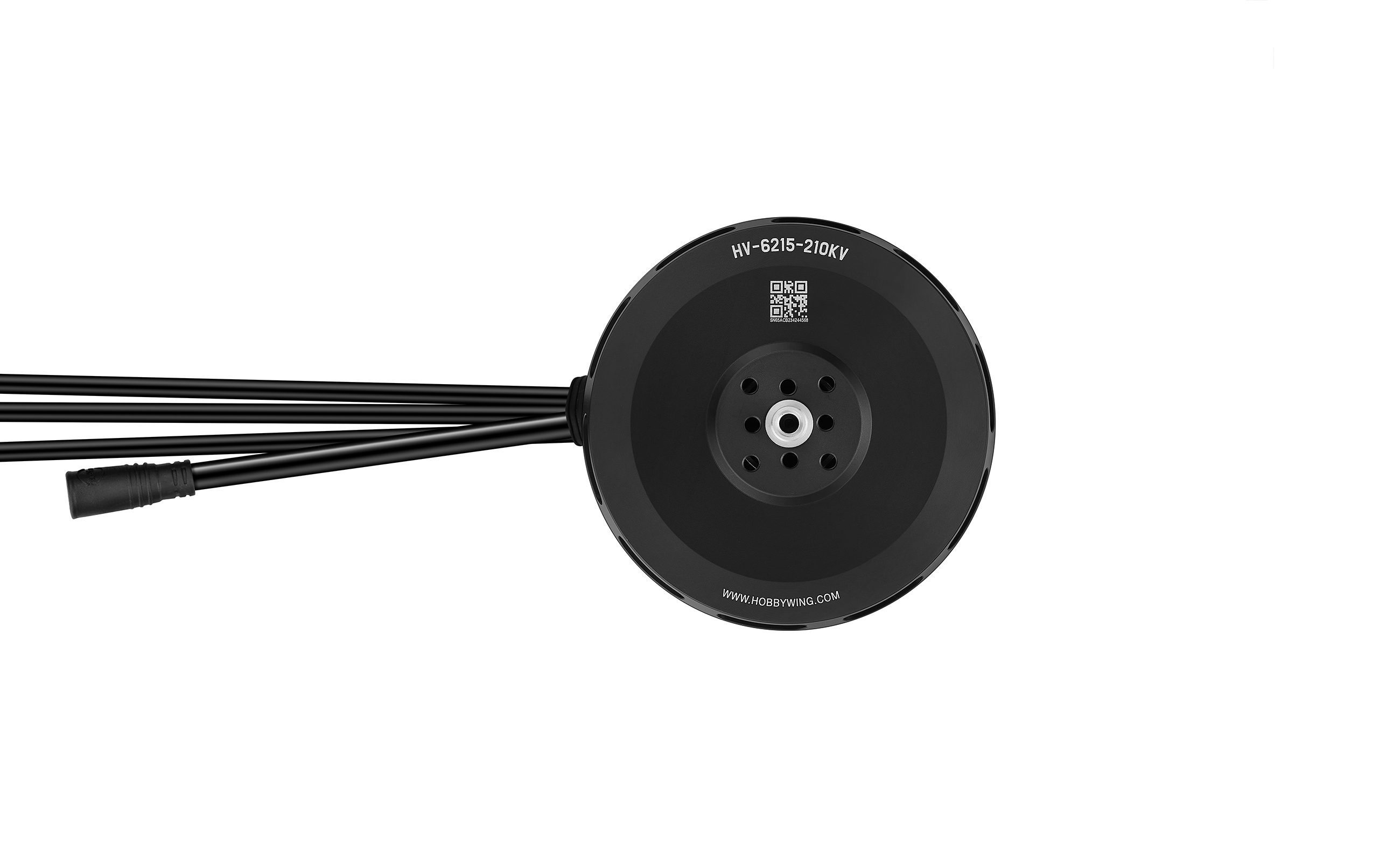

V6215-210KV
The thrust to weight
ratio reaches

V6215-210KV
The maximum thrust is
able to reach @46V

Strong Adaptability and
Flexible Choices
An intelligent propeller control version is optional.
Match it with Hobbywing IPC ESCs to flexibly set propeller stop position.
Reducing the drag during drone cruise flight,
increasing flight time.
The installation interface is standardized to fit common
propellers.
Carefully Selected Materials
Rigorous Testing
Recommended
  • Motor
    V6215 210KV
    Battery
    12S LiPo
  • Propeller
    MV22*7.4"/ML22*7.8"
    Thrust/Rotor
    5~6kg
  • ESC
    XRotor Pro-H60A-14S
    XRotor Pro-H80A-14S-IPC
    Maximum Take-off Weight/Quadrotor
    20~25kg
  • Motor
    V6212 180KV
    Battery
    12S LiPo
  • Propeller
    MV22*7.4"/MP21*6.3"
    Thrust/Rotor
    3.5~5kg
  • ESC
    XRotor Pro-H60A-14S
    XRotor Pro-H80A-14S-IPC
    Maximum Take-off Weight/Quadrotor
    15~20kg
V6215 CAD
V6212 CAD
Model
V6215 210KV V6212 180KV
Specification
Motor Size Φ68.7*H39.3mm Φ68.7*H39.3mm
Stator Size Φ61.5mm Φ61.5mm
Stator process High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat		 High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat
Enamelled wire 200℃ 200℃
Magnet 150℃ 150℃
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test
Protection level IPX5 IPX5
Slot& Pole 24N28P 24N22P
Dynamic balance ≤10mg ≤10mg
Bearing High-quality waterproof bearing High-quality waterproof bearing
Motor axle diameter Φ6mm Φ6mm
Props mounting dimensions 4×M3@D12+4×M3@D18 4×M3@D12+4×M3@D18
Motor mounting dimensions 4×M4@D25 4×M4@D25
Specification
KV 210 180
Battery(LiPo) LiPo-12S LiPo-12S(46V)
No-load current 2.6A 1.53A
Maximum current 81A 58A
Max power 3733W 2685W
Max thrust 13.8kg 11.1kg
Resistance 48.2mΩ 84mΩ
Wire Size 14AWG 16AWG
Wire length 600mm 600mm
Weight（With wire） 354g 292g
Recommended combinations
Motor V6215 210KV V6212 180KV
Propeller MV22*7.4"/ML22*7.8" MV22.1*7.4"/MP21*6.3"
ESC XRotor Pro-H60A-14S/H80A-14S-IPC XRotor Pro-H60A-14S/H80A-14S-IPC
Battery 12S LiPo 12S LiPo
Thrust/rotor 5~6kg 3.5~5kg
Takeoff weight of quadrotor 20~25kg 15~20kg
V6215 210KV Load performance parameters
V6215 210KV Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Temperature(℃)

46V (12S LiPo)

MV 22.1*7.4"

32%

2117

4.9

227.3

2931

9.3

0.56

125°C

33%

2174

5.1

235.2

2968

9.2

0.57

36%

2562

6.3

291.3

3216

8.8

0.67

39%

3007

7.9

361.6

3477

8.3

0.78

42%

3484

9.6

443.3

3736

7.9

0.91

45%

3974

11.6

534.0

3981

7.4

1.03

48%

4465

13.7

631.4

4210

7.1

1.16

51%

4950

15.9

733.8

4424

6.7

1.29

54%

5429

18.3

840.5

4624

6.5

1.41

57%

5902

20.7

951.5

4813

6.2

1.54

60%

6374

23.2

1067.8

4995

6.0

1.66

63%

6853

25.9

1191.0

5174

5.8

1.79

66%

7345

28.8

1323.3

5352

5.6

1.92

69%

7858

31.9

1467.4

5533

5.4

2.05

72%

8398

35.3

1626.1

5719

5.2

2.20

75%

8969

39.2

1802.2

5909

5.0

2.35

78%

9573

43.4

1997.8

6104

4.8

2.51

81%

10208

48.1

2214.4

6301

4.6

2.68

84%

10866

53.3

2451.9

6495

4.4

2.86

87%

11535

58.9

2707.5

6681

4.3

3.05

90%

12197

64.7

2975.3

6851

4.1

3.23

100%

13879

81.2

3733.4

7220

3.7

3.68
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
V 6212 180KV Load performance parameters
V 6212 180KV Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Temperature(℃)

46V(12S LiPo)

V22.1*7.4"

33%

1845

4.0

183.7

2709

10.0

0.48

75°C

35%

2089

4.6

211.4

2873

9.9

0.54

37%

2334

5.3

244.1

3034

9.6

0.61

39%

2579

6.1

280.4

3189

9.2

0.67

42%

2949

7.4

341.2

3413

8.6

0.77

45%

3322

8.9

408.0

3626

8.1

0.86

48%

3701

10.4

478.9

3830

7.7

0.96

51%

4089

12.1

554.8

4025

7.4

1.06

54%

4489

13.8

634.9

4213

7.1

1.17

57%

4905

15.7

720.5

4395

6.8

1.27

60%

5338

17.7

812.6

4574

6.6

1.38

63%

5791

19.8

912.3

4750

6.3

1.50

66%

6265

22.2

1022.3

4926

6.1

1.62

69%

6759

24.9

1144.3

5102

5.9

1.75

72%

7272

27.8

1280.7

5280

5.7

1.88

75%

7799

31.2

1434.0

5461

5.4

2.02

78%

8333

34.9

1604.3

5644

5.2

2.17

81%

8866

38.9

1788.4

5824

5.0

2.31

84%

9385

43.1

1982.1

5996

4.7

2.45

87%

9875

47.3

2176.3

6150

4.5

2.59

90%

10318

51.2

2356.5

6278

4.4

2.71

100%

11114

58.4

2684.4

6461

4.1

2.92
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
