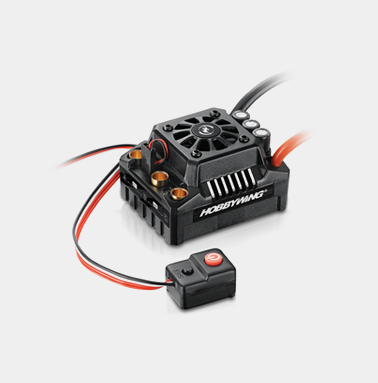

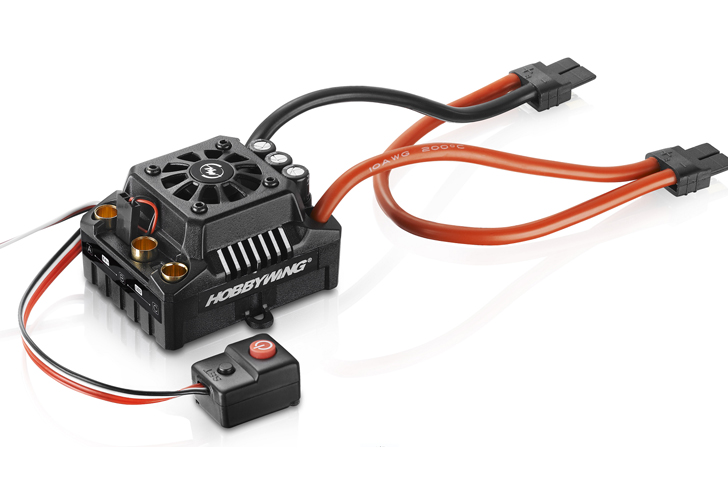

EzRun Max8

Overview
Specifications
Support
Accessories
Detail

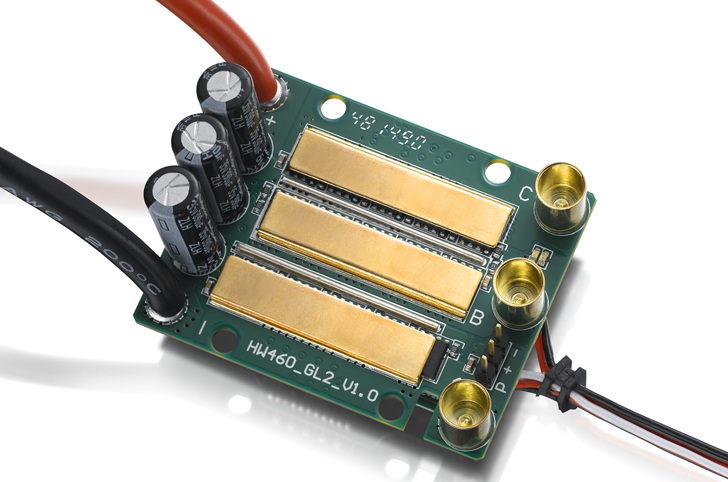

High Reliability & Durability

Reliable hardware combined with advanced software allows the ESC to not only provide extremely high
output but also protect itself timely from damages caused by overload. It significantly reduces the
possibility of getting damaged by heavy load and improves the reliability and durability.

Great Flexibility & Versatility

The ESC has strong outbreak and stable output, so vehicle can do different moves without
a problem, no matter aggressive start-up and wheelie, 720-degree flip (note 1), high speed
running on straight tracks or flying over slopes. It always provide the power more than
sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up.
Note 1: Not every vehicle can do the 720-degree flip because of different chassis design.
It’s known that HPI SAVAGE can do this move.

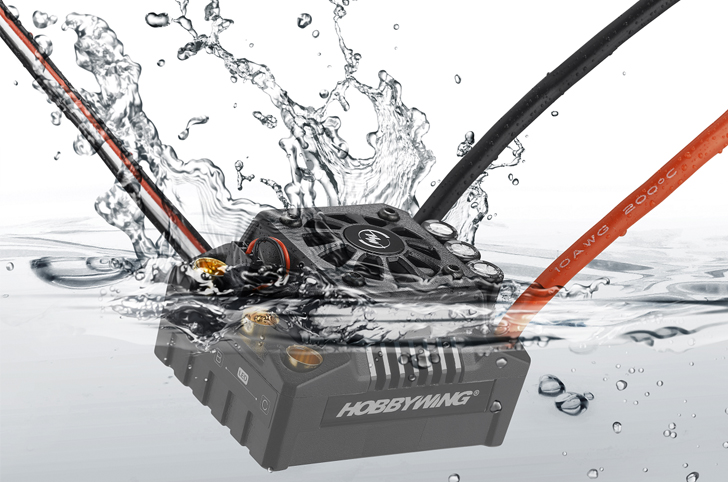

Applicable to All Weather Conditions

Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather
conditions, no matter the track is covered with dust, gravel, snow or puddles.

Super Built-in BEC

The world’s 1st 1/8^th scale ESC adopted the super built-in BEC with the max. output current of up to 15A and switchable output
voltage (6V/7.4V). It can drive different servos, high voltage
servos at ease and bring amazing control feel to drivers.

Advanced and Secure Electronic Switch

The electronic switch with the lifespan of over 50000 times of switching on & off features a
completely waterproof, dust-proof and shock-resistant design, completely solved problems
like stuck reed and rust contact points caused by dust and moisture, switching off
automatically caused by violent dash (like landing after flying over slopes) conventional
mechanical switches often have.

Electronic Switch

Plug and Play

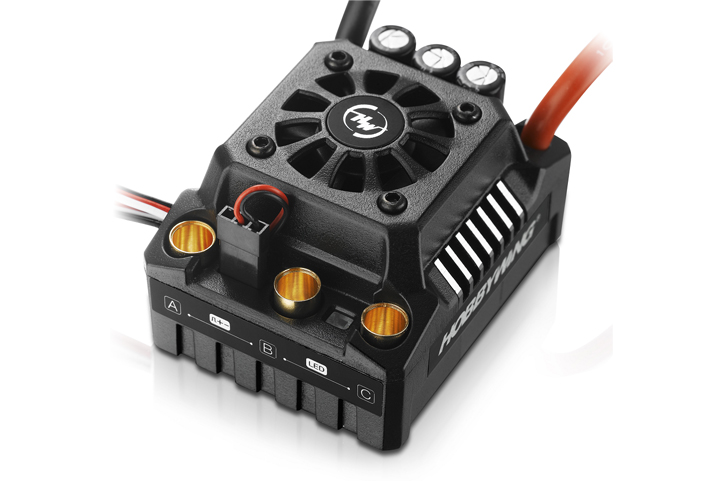

Standard 6.5mm gold-plated connectors at the ESC’s output end are
perfectly compatible with stock motor connectors of many popular
1/8th scale monster trucks like TRAXXAS’s and HPI’s.

6.5mm
gold-plated
connectors

Wide Applicability

The ESC provides the optimal upgrade solution for many popular 1/8^th scale monster
trucks like TRAXXAS E-REVO & E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT.
It’s also applicable to other trucks and buggies.

TRAXXAS E-REVO

TRAXXAS SUMMIT

HPI SAVAGE

THUNDER TIGER

Almost Maintenance Free

The whole ESC except the cooling fan is basically maintenance free.
Besides, the fan has also adopted the special anti-shock design,
reduced damage brought by frequent jumps of the vehicle, greatly
reduced maintenance work to the fan.

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port
Fan	Size Voltage Range Powered by
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		EzRun MAX8 V3
Product Number		30103200(XT90 Plug)
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/8^th BL SL WP
Specifications	Cont./Peak Current Input Voltage BEC Output	150A/950A 3-6S LiPo/9-18 Cells NiMH Switch Mode:6V/7.4V，6A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors	Red-10AWG-200mm1/Red-10AWG-150mm1/Black-10AWG-150mm1 Black-10AWG-200mm3 XT90 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port	Supported Supported Supported Supported Supported FAN/Program Port
Fan	Size Voltage Range Powered by	30x30x10mm 5-7.4V Powered by BEC
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	59.8x48.0x36.8mm 174g
Applications	Motors Vehicles KV Rating/T Count	SL BL Motors/SD BL Motors(only in SL mode) 1/8^th Touring Car/Buggy/TrucK 4S LiPo:KV≤3000;/6S LiPo:KV≤2400(40XX Series of Motors)
