EzRun 3656

Construction

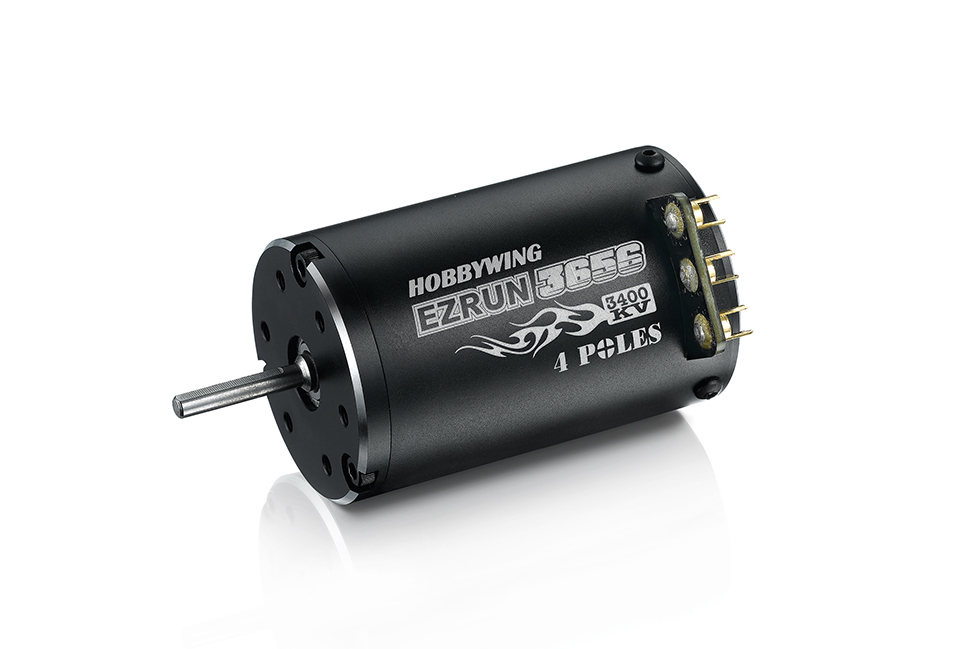

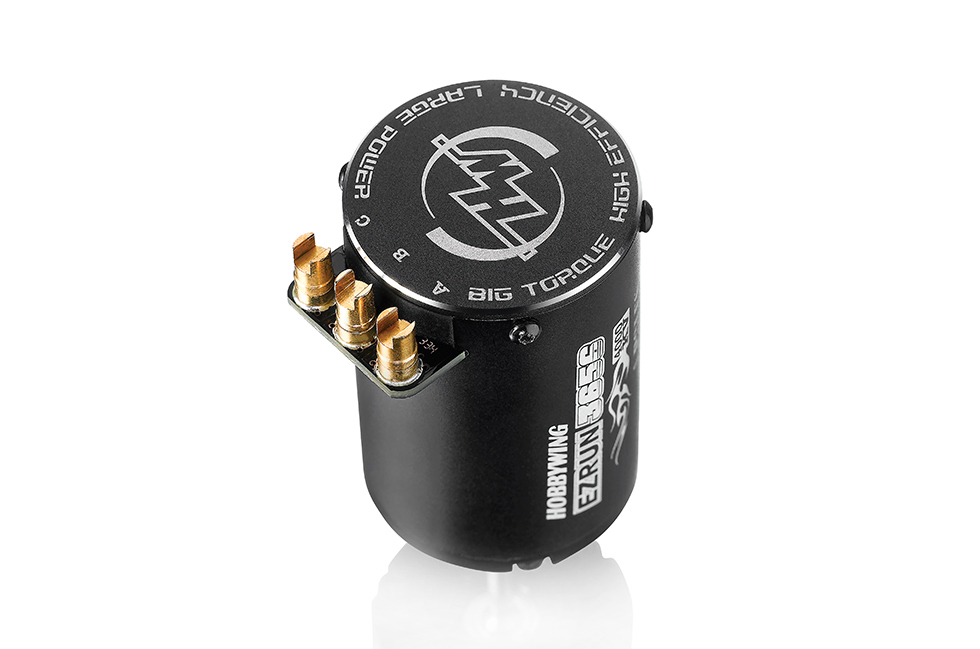

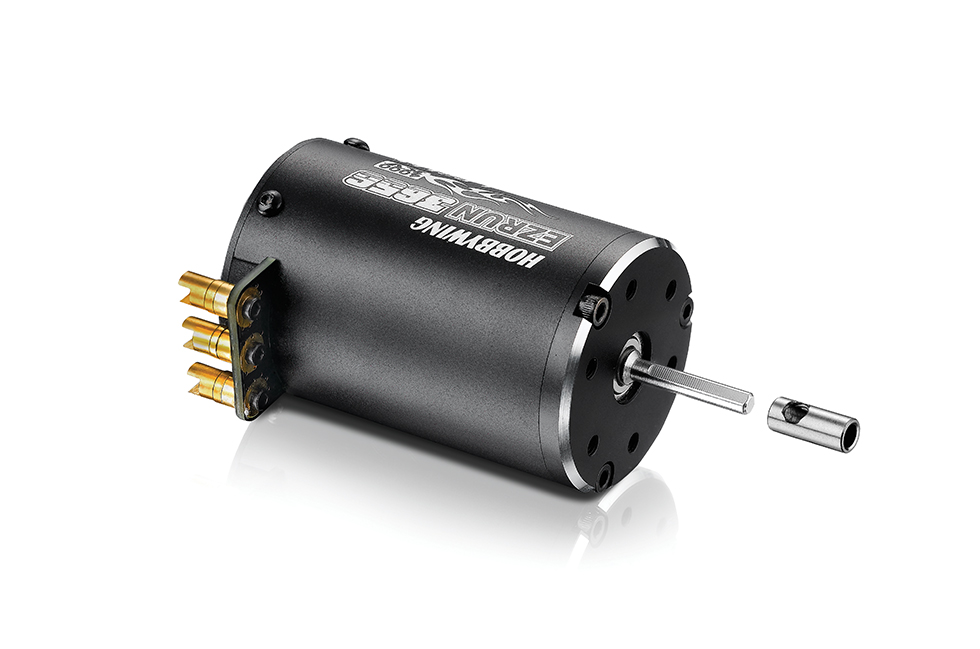

The motor housing is made from hard anodized aluminum, motor windings are wound
from double insulated wire, the advanced rotor structure is designed
to handle high temperature from the use of rare earth magnets and the bearings
which are implemented are high precision metal caged for a minimum
to zero friction which in turn will guarantee strength, outstanding performance,
high durability and smoothness of the motor.

Construction

High Torque

The 4 pole design will guarantee the motor to produce very large
amounts of torque, a much faster acceleration response and a
very stable output of power to the drive train.

High Torque

Compatible (with the EZRUN WP-SC8 ESC)

When pairing the EZRUN 3650SD motor with the Hobbwing EZRUN WP-SC8 ESC,
the excellent match between ESC and motor will give you large torque plus a
very smooth and linear power band.

Compatible (with
the EZRUN WP-SC8 ESC)

Wide Application

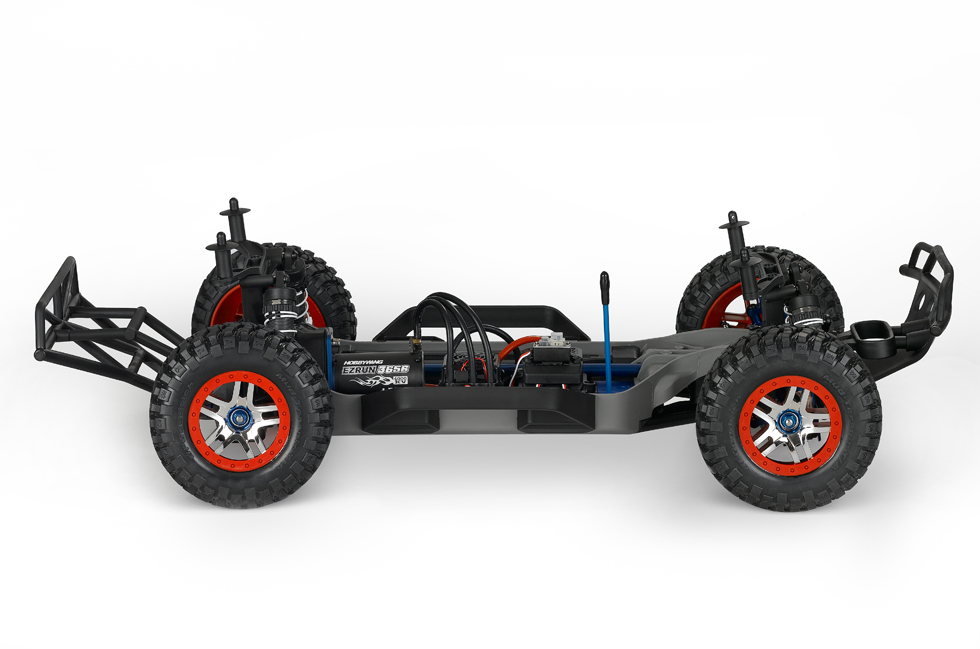

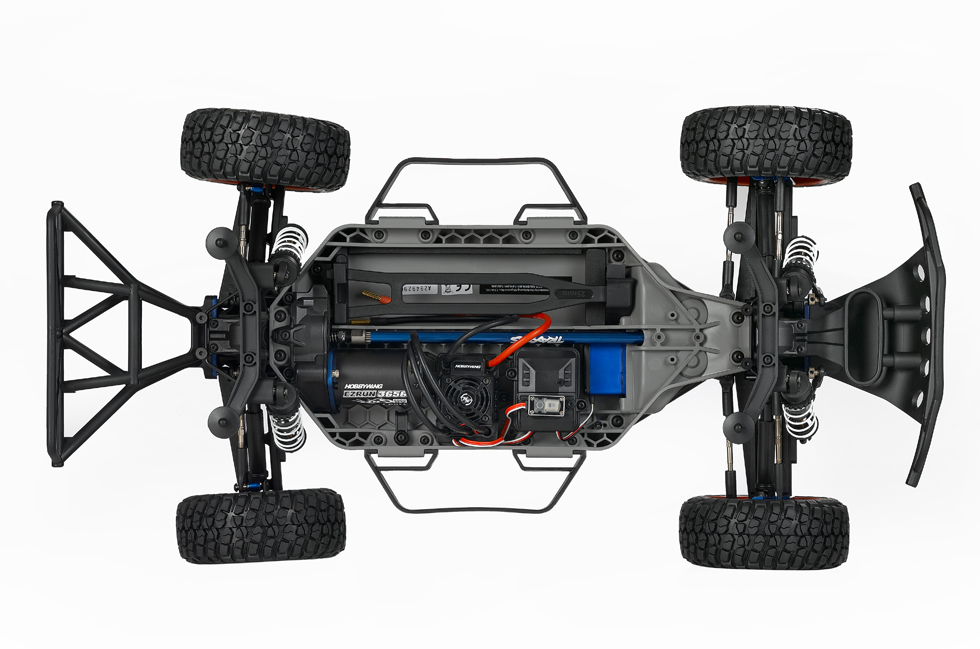

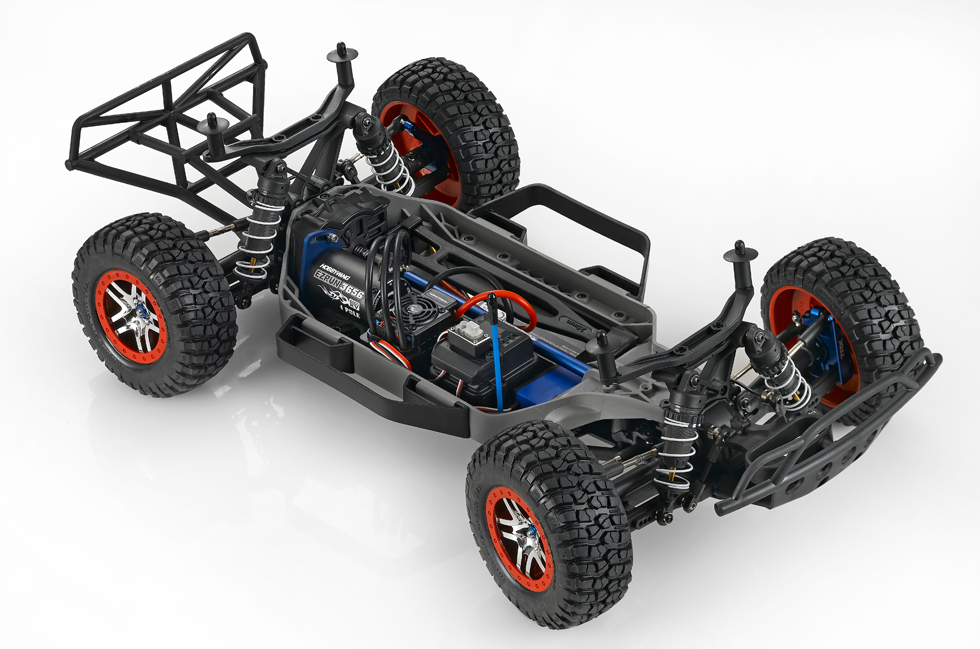

The EZRUN 3650SD is applicable to various 1/10th scale vehicles,
especially short-course trucks & monster trucks.

Wide Application

Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Specifications KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Current at the Point of Max. Power Output(A)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)
Other Parameters Timing

Applications
Product Name EzRun SL 3656-3400KV EzRun SL 3656-4000KV EzRun SL 3656-4700KV
Product Number 90110000 90110010 90110020
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count		 1/10th

BL

SL

4		 1/10th

BL

SL

4		 1/10th

BL

SL

4
Specifications KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Current at the Point of Max. Power Output(A)		 3400

2-3S

4.2

440

108		 4000

2-3S

5.5

460

115		 4700

2S

6.8

480

117
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)		 35.8

56.0

3.175

215		 35.8

56.0

3.175

220

 35.8

56.0

3.175

215
Other Parameters Timing

Applications		 0

1/10th 2WD/4WD SC Trucks, Monster Trucks		 0

1/10th 2WD/4WD SC Trucks, Monster Trucks		 0

1/10th 2WD/4WD SC Trucks, Monster Trucks
